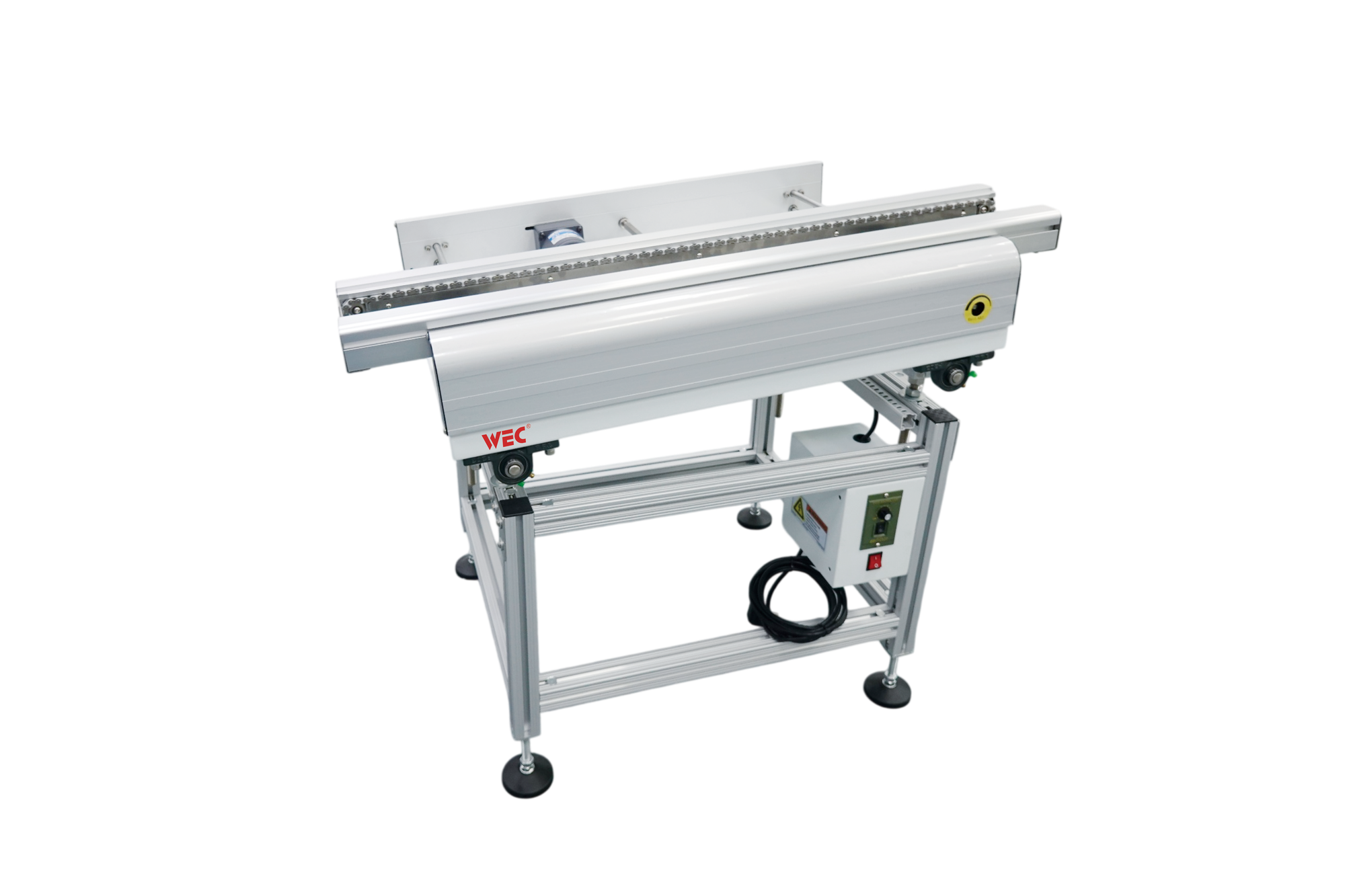

1.0m Inlet Conveyor
WL-100M-LE
Used to connected with wave soldering for linking function.
The transport height to connect with MI conveyor is 750mm, the height to connect with wave soldering is 800mm, the height can be adjusted.
Request a Quote
The transport height to connect with MI conveyor is 750mm, the height to connect with wave soldering is 800mm, the height can be adjusted.
Technical Specifications
Specific Technical Details
| Parameter | WL-100M-LE |
|---|---|
| Machine Size | (L)1000x(W)560x(H)800+/-50mm |
| PCB Size | 50*50~(L)500*(W)350mm |
| Transport Rail | Special guide rail. Use white nylon chain for transfering |
| Transport Direction | Front fixed, left to right |
| Transport Height | 900+50/-20mm |
| Transport Motor | ZD 25W speed adjustable motor |
| Power | AC220V/50-60HZ(single electric box control) |
| Frameworks | Sheet metal frame, surface anti-static powder spraying |
