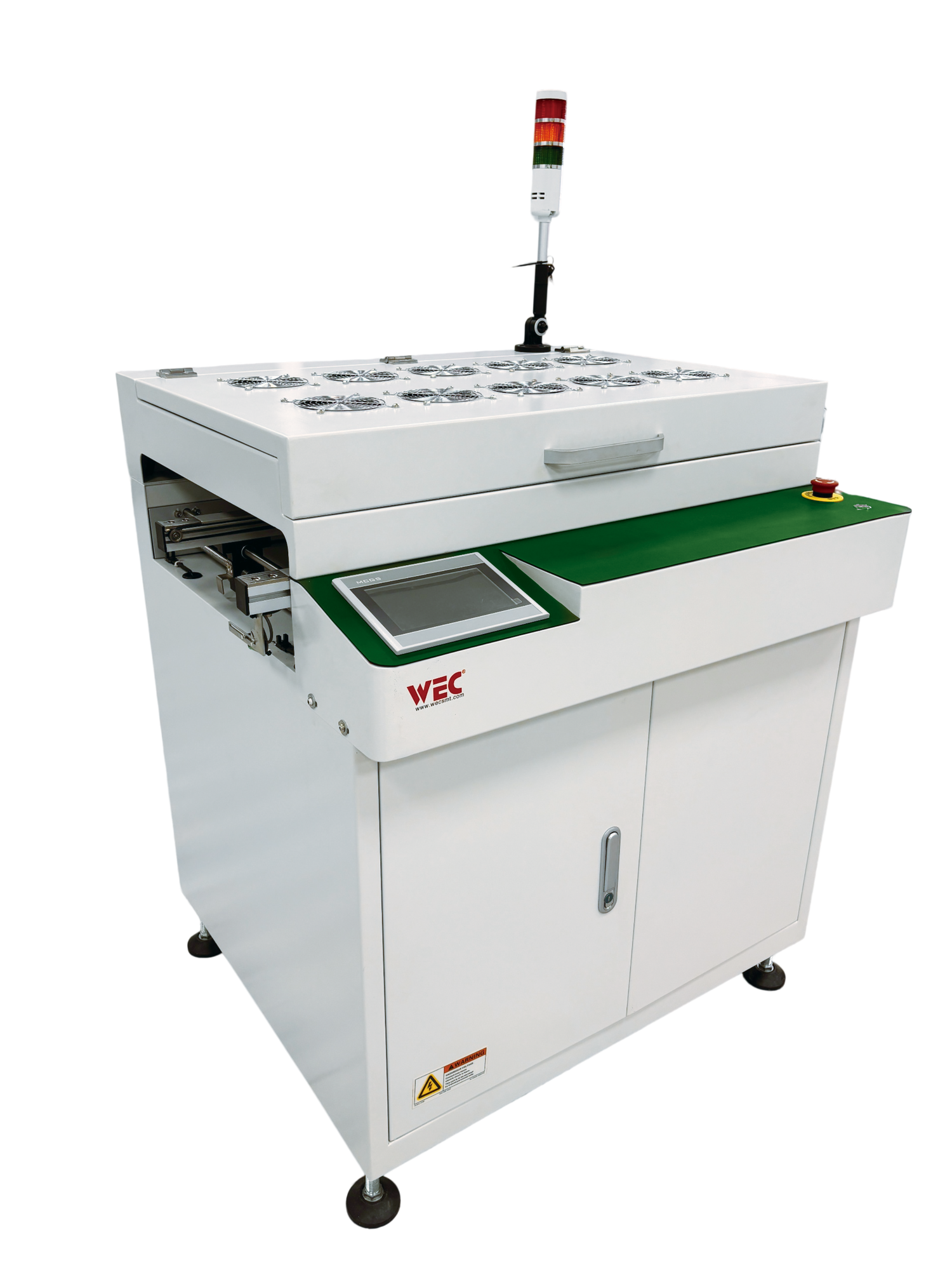

1.0m Cooling Conveyor with Cover ( Digital Width Adjusted)
BF-100M-BEFCY / BF-100L-BEFCY
Used in SMT line as linking ,buffer,inspection fucntion, 3 sensors.
In manual mode can stop one PCB for inspection, after press reset button, PCB flow to exit to wait for downstream signal to send out.
In auto mode, PCB flow to exit directly to wait for downstream signal to send out.
With cover and fan.
Digital width adjustment stand-alone. Can store at least 200pcs product names with different width in touch screen.
Request a Quote
In manual mode can stop one PCB for inspection, after press reset button, PCB flow to exit to wait for downstream signal to send out.
In auto mode, PCB flow to exit directly to wait for downstream signal to send out.
With cover and fan.
Digital width adjustment stand-alone. Can store at least 200pcs product names with different width in touch screen.
Technical Specifications
Specific Technical Details
| Parameter | BF-100M-BEFCY | BF-100L-BEFCY |
|---|---|---|
| Machine Size | (L)1000*(W)700*(H)1100mm | (L)1000*(W)800*(H)1100mm |
| PCB Size | 50*50~(L)460*(W)350mm | 50*50~(L)535*(W)460mm |
| Transport Direction | Front fixed, left to right | |
| Transport Height | 900+50/-20mm | |
| Transport Rail | Special guide rail. 4.8mm edge belt for transfering. | |
| Rail Weight Loading | Under 2KG | |
| Control System | PLC、Sensor. | |
| Inspection Station | Install 250mm work table at front of rail. | |
| Power | AC220V/50-60HZ (single electric box control). | |
| Option | Manual width adjusted | |
| Option | Ethernet line width adjusted, can communicate with each other machine.Machines will follow the previous machine to adjust the width automatically. | |
