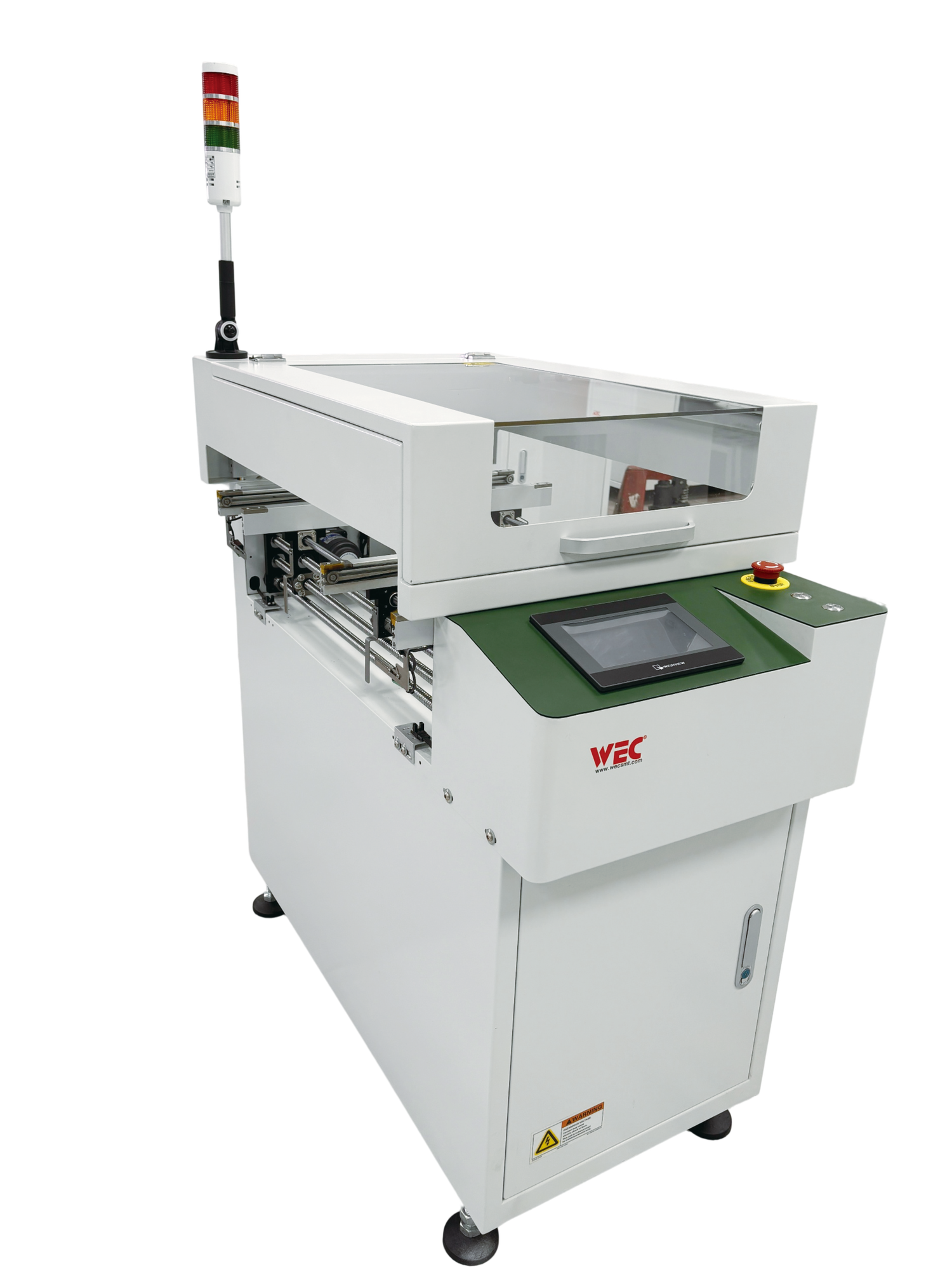

0.5m Dual Lane Conveyor with Cover ( Digital Width Adjusted )
DF-050S-BECY
To work with dual rail oven or dual rail mounting machine. Two rails one segment, two sets of transport motor, each rail can hold one board. 6 sensors.
Digital width adjusted stand-alone. Can store at least 200pcs product names with different width in touch screen.
With cover on top of rail.
Request a Quote
Digital width adjusted stand-alone. Can store at least 200pcs product names with different width in touch screen.
With cover on top of rail.
Technical Specifications
Specific Technical Details
| Parameter | DF-050S-BECY |
|---|---|
| Machine Size | (L)500x(W)980x(H)1100mm |
| PCB Size | Rail 1 fixed, rail 2,3,4 are movable. Rail 2&3 the min size is 40mm, rail 1&4 the max distance is 686mm |
| Transport Direction | Front fixed, left to right. |
| Transport Height | 900+50/-20mm |
| Transport Rail | Special guide rail. Use 4.8mm edge belt for transfering |
| Rail Weight Loading | Under 2KG |
| Control System | PLC、Sensor. |
| Power | AC220V/50-60HZ (single electric box control) |
| Option | Manual width adjusted |
| Option | Ethernet line width adjusted, can communicate with each other machine.Machines will follow the previous machine to adjust the width automatically. |
