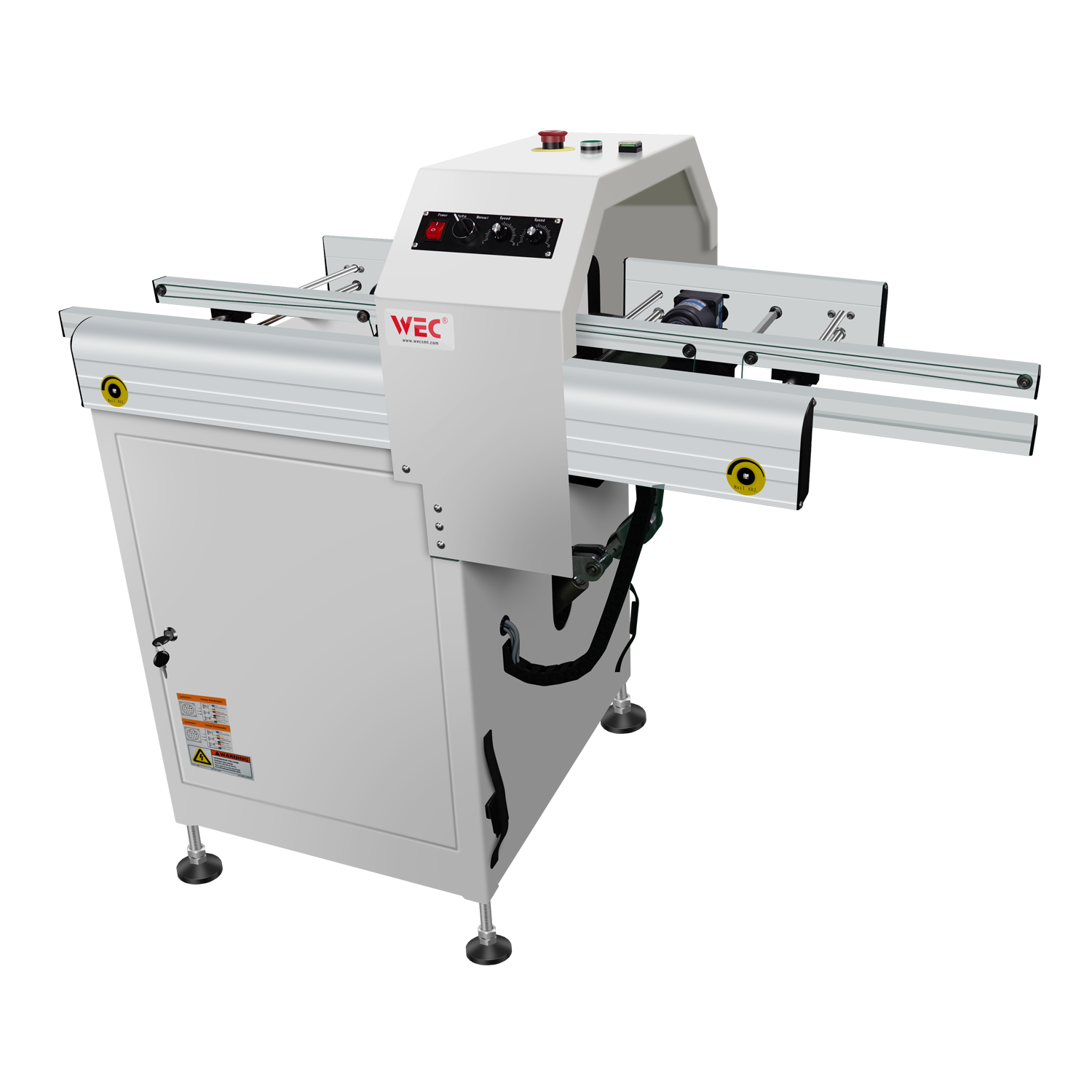

Lift Down Gate Conveyor
GL-35N-ES / GL-46N-ES
1.This unit is used as a liking function when in a long SMT line.When operator need to pass through the production line, press the button,the rail will goes down and folding to make room for 500mm length space.Press button again after pass through, the rail back to position and continue to work.
Request a Quote
Technical Specifications
Specific Technical Details
| Parameter | GL-35N-ES | GL-46N-ES |
|---|---|---|
| Machine Size | 1300(L)*570(W)*1100(H)mm | 1300(L)*670(W)*1100(H)mm |
| PCB Size | 50*50～(L)460*(W)350mm | 50*50～(L)535*(W)460mm |
| Transport Direction | Front rail fixed, from left to right transport. | |
| Transport Height | 900+50/-20mm | |
| Transport Rail | Special guide rail. | |
| Control System | PLC、Press-button control、sensor | |
| Power | AC220V/50-60HZ (single electric box control). | |
