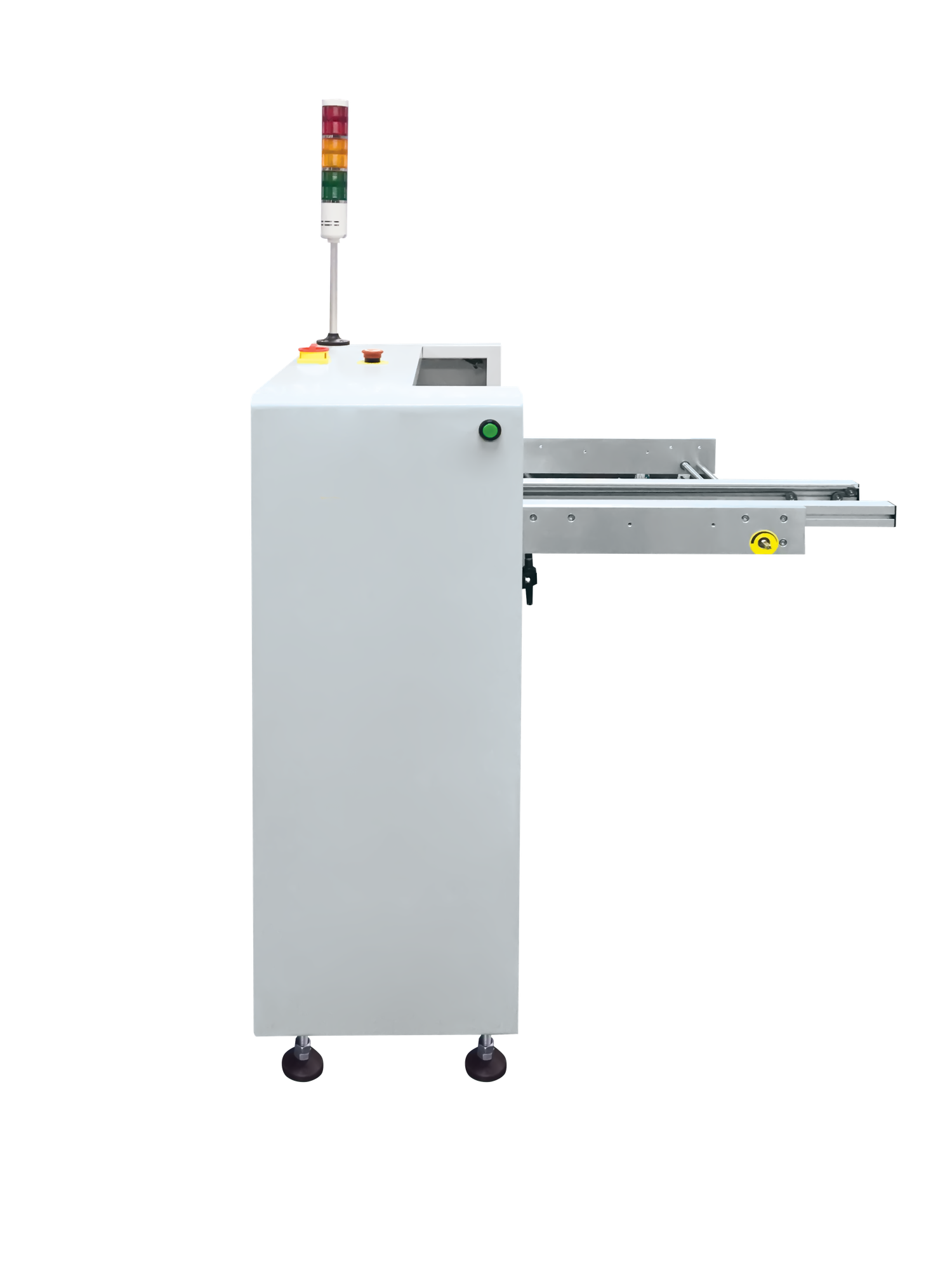

Lift Up Gate Conveyor
GH-35N-ES / GH-46N-ES
1. This unit is used to provide a passageway in a longer production line when required.when the people need to through SMT production line,
press the rail lift up button to create a 600mm aisle,after the people through,press the button then the machine will back to work.
Request a Quote
press the rail lift up button to create a 600mm aisle,after the people through,press the button then the machine will back to work.
Technical Specifications
Specific Technical Details
| Parameter | GH-35N-ES | GH-46N-ES |
|---|---|---|
| Machine Size | 1300(L)*570(W)*1100(H)mm | 1300(L)*670(W)*1100(H)mm |
| PCB Size | 50*50～(L)460*(W)350mm | 50*50～(L)535*(W)460mm |
| Transport Direction | Front rail fixed, from left to right transport. | |
| Transport Height | 900+50/-20mm | |
| Transport Rail | Special guide rail. | |
| Control System | PLC、Press-button control、sensor | |
| Power | AC220V/50-60HZ (single electric box control). | |
