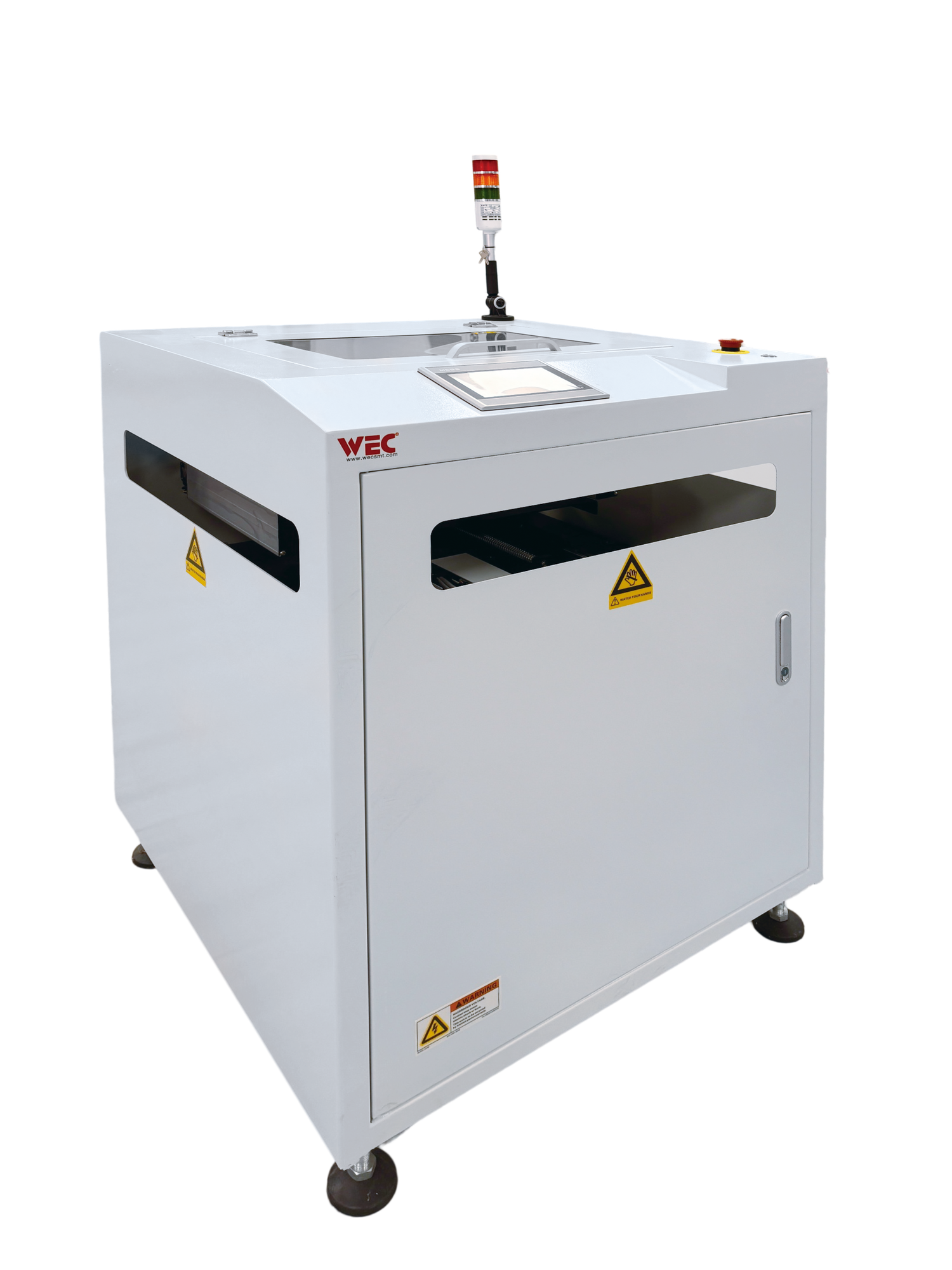

90° Turning Conveyor
BR-35N-ES / BR-46N-ES
1.Change PCB direction at turning or intersection of SMT production line.
Request a Quote
Technical Specifications
Specific Technical Details
| Parameter | BR-35N-ES | BR-46N-ES |
|---|---|---|
| Machine Size | （L)700mm*(W)700mm*(H)1200mm | （L)800mm*(W)800mm*(H)1200mm |
| PCB Size | 50*50～(L)460*(W)350mm | 50*50～(L)535*(W)460mm |
| Transport Direction | Front rail fixed, from left to right transport. | |
| Transport Height | 950+50/-20mm | |
| Transport Rail | Special guide rail. | |
| Control System | Touch screen、 PLC、Photoelectric sensor. | |
| Power | AC230V/50-60HZ (single electric box control) | |
