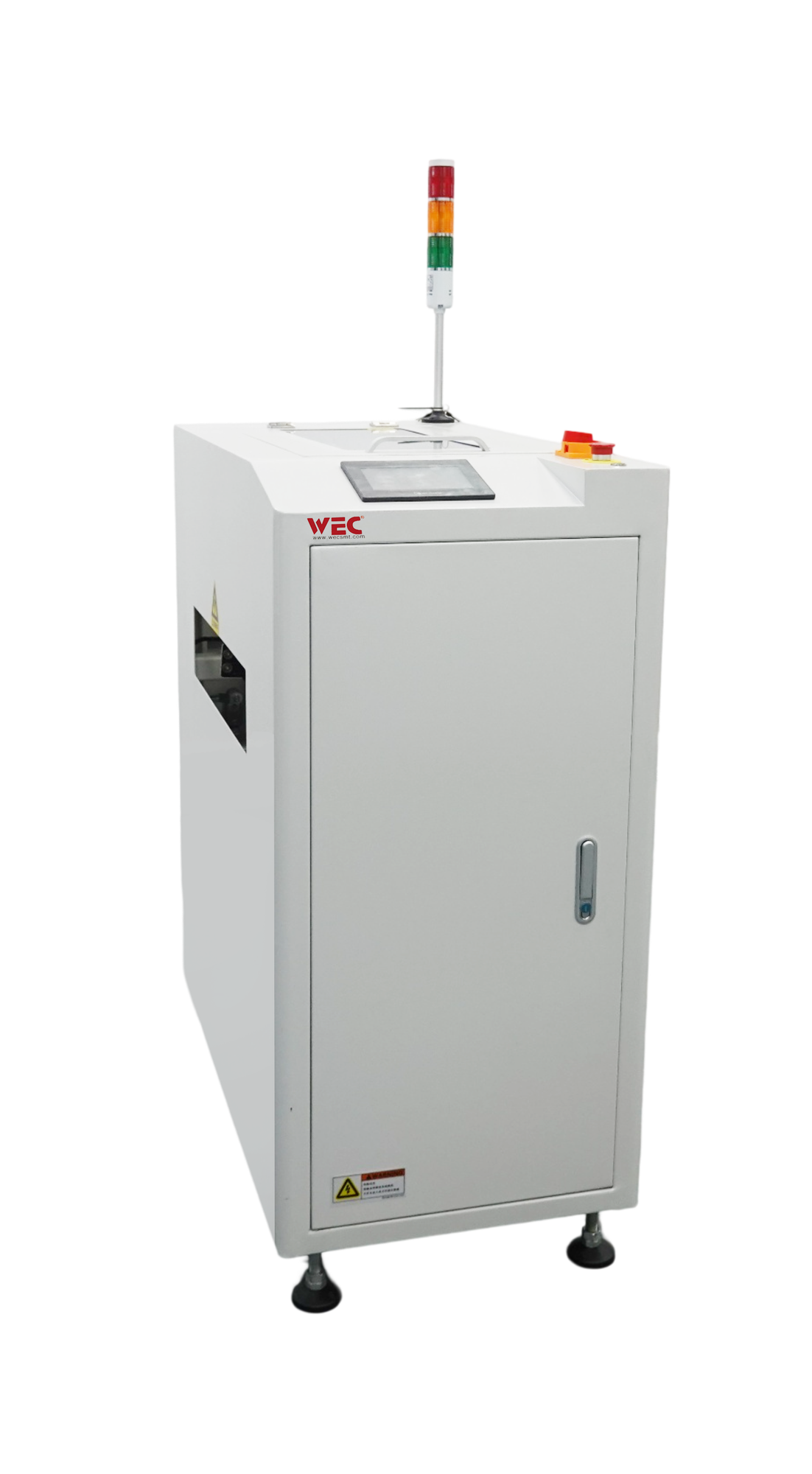

Automatic Inverter Conveyor
BI-35N-ES / BI-46N-ES
1.To mount both side of PCBs. After finish one side of PCB, this machine will turnover to another side and transfer to downstream.
Request a Quote
Technical Specifications
Specific Technical Details
| Parameter | BI-35N-ES | BI-46N-ES |
|---|---|---|
| Machine Size | 500(L)*980(W)*1250(H)mm | 600(L)*1190(W)*1250(H)mm |
| PCB Size | 50*50～460*350mm | 50*50～535*460mm |
| Transport Direction | Front rail fixed, from left to right transport. | |
| Transport Height | 950+50/-20mm | |
| Transport Rail | Special guide rail. | |
| Control System | Touch screen、 PLC、Photoelectric sensor. | |
| Power | AC220V/50-60HZ (single electric box control). | |
| Turnover Motor | Motor flip | |
