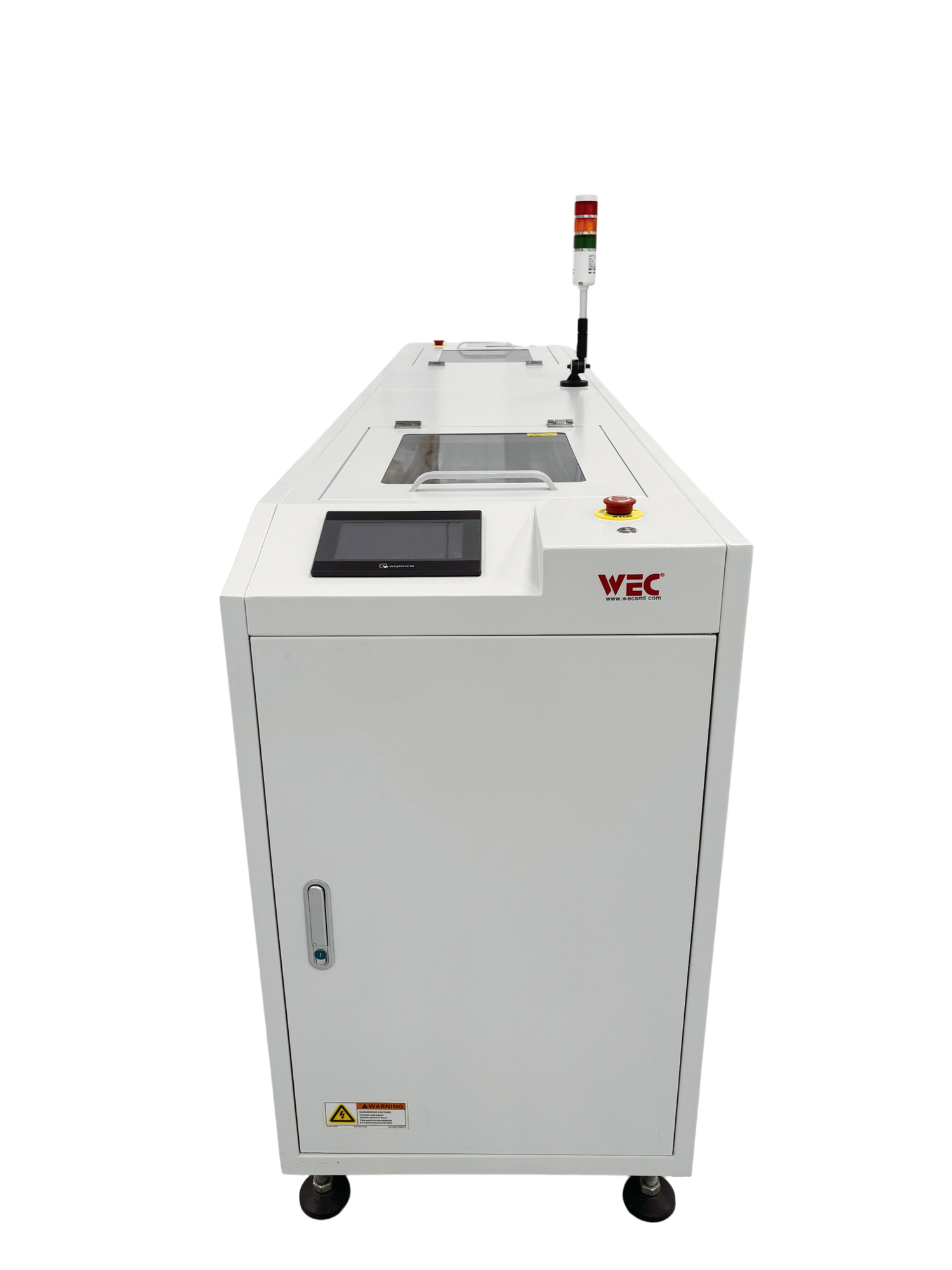

Dual Lane Shuttle Conveyor
PC-35N-ES26
Used for translating two single rail lines into double lines.
Dimensions are customized according to customer requirements.
Request a Quote
Dimensions are customized according to customer requirements.
Technical Specifications
Specific Technical Details
| Parameter | PC-35N-ES26 |
|---|---|
| Machine Size | (L)500*(W)2600*(H)1100mm |
| PCB Size | 50*50~(L)460*(W)350mm |
| Transport Direction | Front rail fixed, from left to right transport. |
| Translation Cycle | The translation cycle of the machine is 10 seconds |
| Transport Height | 950+50/-20mm |
| Transport Rail | Special guide rail. |
| Power | AC220V/50-60HZ (single electric box control). |
| Control Panel | Two side operation, touch screen |
| Shuttle System | Step motor and synchronous belt and translation slide block. |
