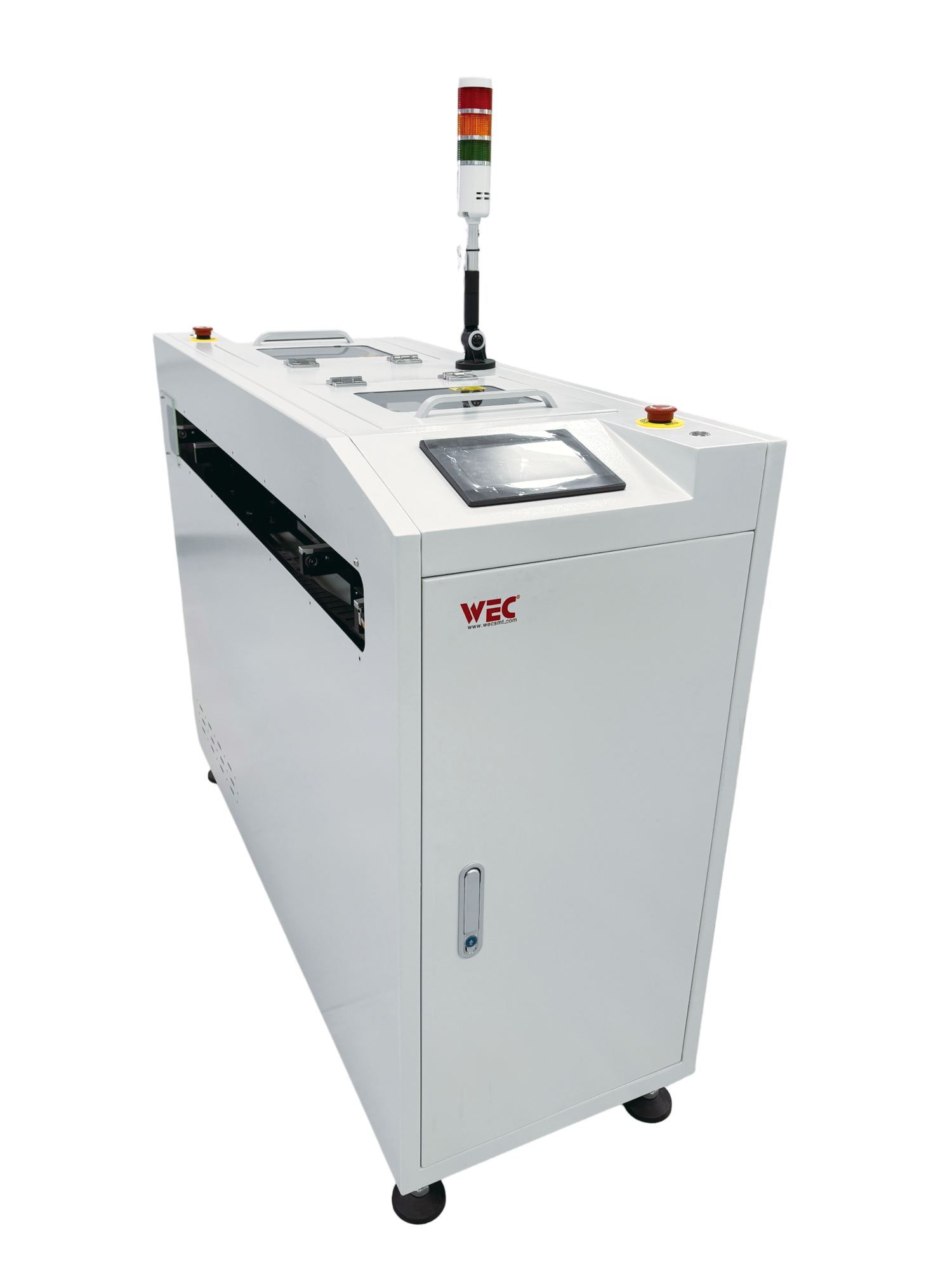

Single Lane Shuttle Conveyor
PC-35N-ES14
Used in SMT when the front and rear machine rail edge not in the same line,as linking function.
Used to combine two SMT production lines into one,or makes one line separated to two lines.
Dimensions are customized according to customer requirements.
Request a Quote
Used to combine two SMT production lines into one,or makes one line separated to two lines.
Dimensions are customized according to customer requirements.
Technical Specifications
Specific Technical Details
| Parameter | PC-35N-ES14 |
|---|---|
| Machine Size | (L)500*(W)1400*(H)1100mm |
| PCB Size | 50*50~(L)460*(W)350mm |
| Transport Direction | Front rail fixed, from left to right transport. |
| Translation Cycle Time | The translation cycle of the machine is 10 seconds |
| Transport Height | 950+50/-20mm |
| Transport Rail | Special guide rail. |
| Power | AC220V/50-60HZ (single electric box control). |
| Control Panel | Touch screen |
| Shuttle System | Step motor and synchronous belt and translation slide block. |
