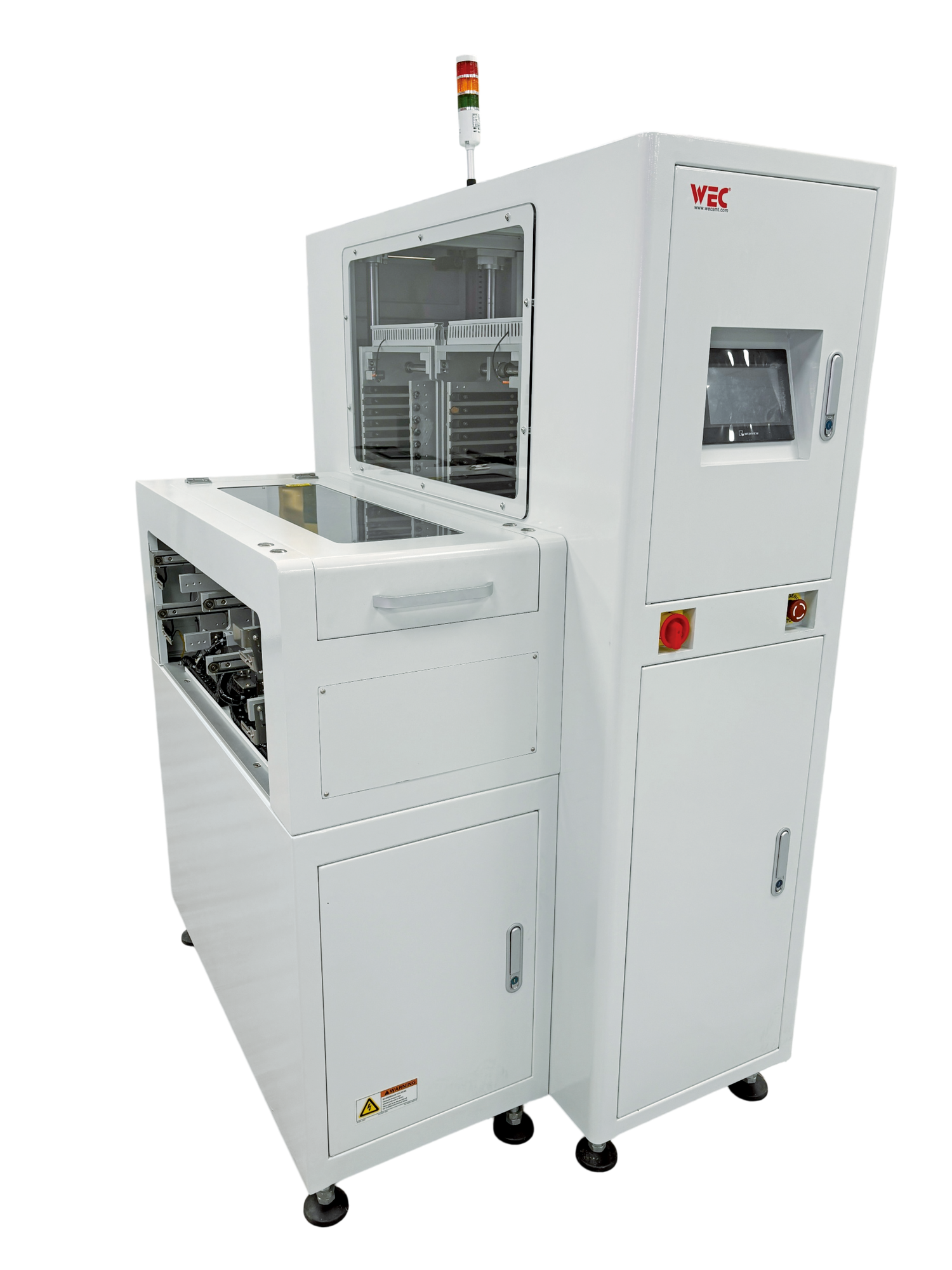

Dual Lane Belt Buffer
HB-25N-ED
1.Used for SMT production line for dual lane buffering, each can store 20 PCBs, can control the PCB FIFO, or LIFO. The storage time of PCB board entering the lifting platform can be set on the touch screen.
Request a Quote
Technical Specifications
Specific Technical Details
| Parameter | HB-25N-ED |
|---|---|
| Machine Size | 1200(L)*1250(W)*1650(H)mm |
| PCB Size | 50*50～350*250mm |
| Transport Direction | Front rail fixed, from left to right transport. |
| Transport Height | 900-50/-20mm |
| Transport Rail | Special precision guide, use 2.7mm ESD edge belt |
| Control System | PLC、Photoelectric sensor. |
| Power | AC220V/50-60HZ (single electric box control) |
