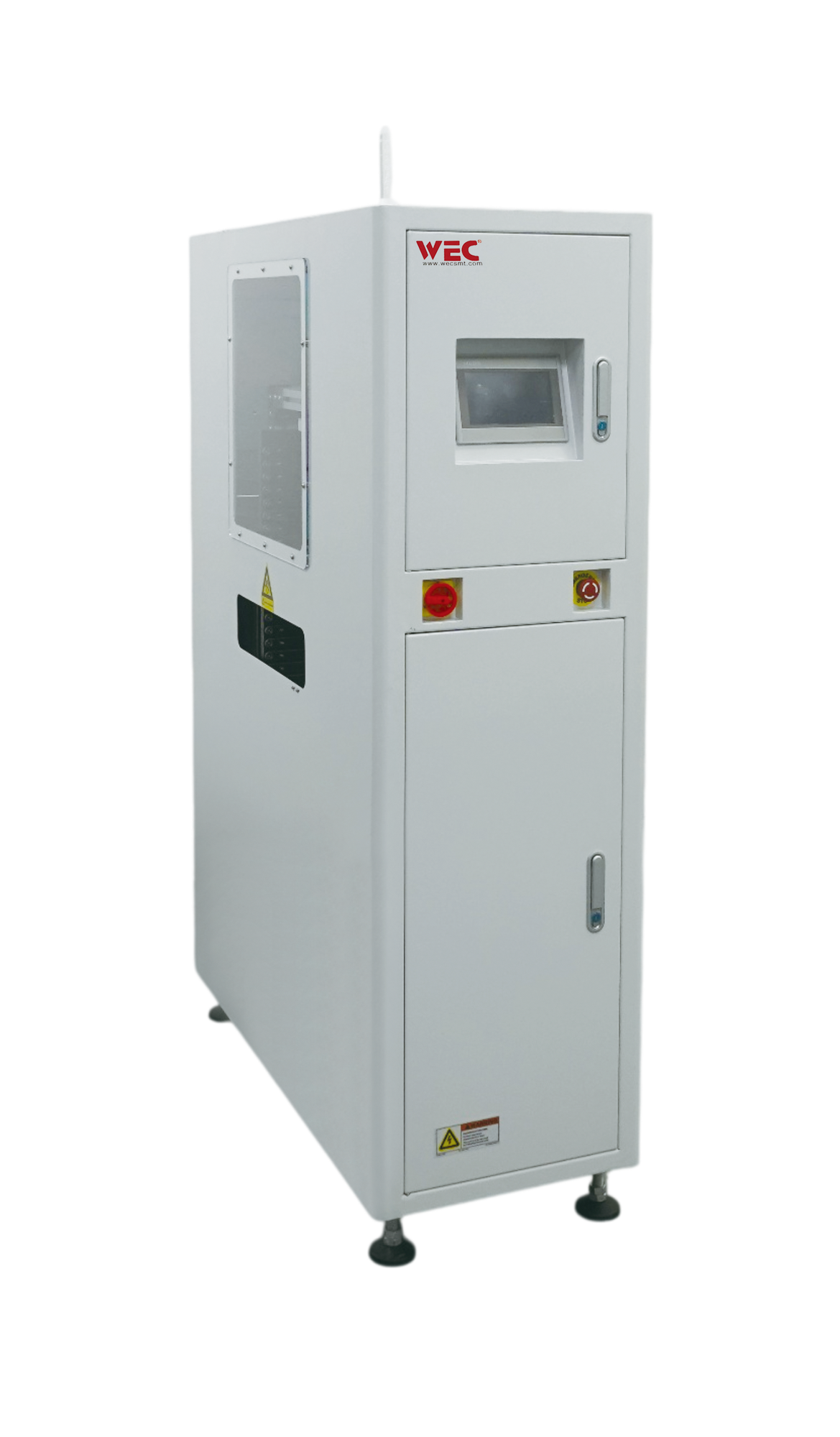

Belt Buffer With Cover
HB-35N-ES / HB-46N-ES
1.Used in SMT line after printer as buffer function,can store 20 PCBs. Can control FIFO or LIFO ( first in first out or last in first out).
2.Can disable the memory function of any layer on the touch screen.
Request a Quote
2.Can disable the memory function of any layer on the touch screen.
Technical Specifications
Specific Technical Details
| Parameter | HB-35N-ES | HB-46N-ES |
|---|---|---|
| Machine Size | 510(L)*880(W)*1650(H)mm | 610(L)*990(W)*1650(H)mm |
| PCB Size | 50*50～L460*W350mm | 50*50～L535*W460mm |
| Width Adjusted | Used ZD 15W fixed motor to adjust width. | |
| Transport Direction | Front rail fixed, from left to right transport. | |
| Transport Height | 900+50/-20mm | |
| AC Power | AC220V/50-60Hz(single electric box control) | |
| Transport Rail | Special precision guide | |
| Rail loading Weight | Under 2 kg. | |
| Control System | Touch screen、 PLC、Photoelectric sensor. | |
| Standard Signal | SMEMA | |
| Option | With cooling fan | |
