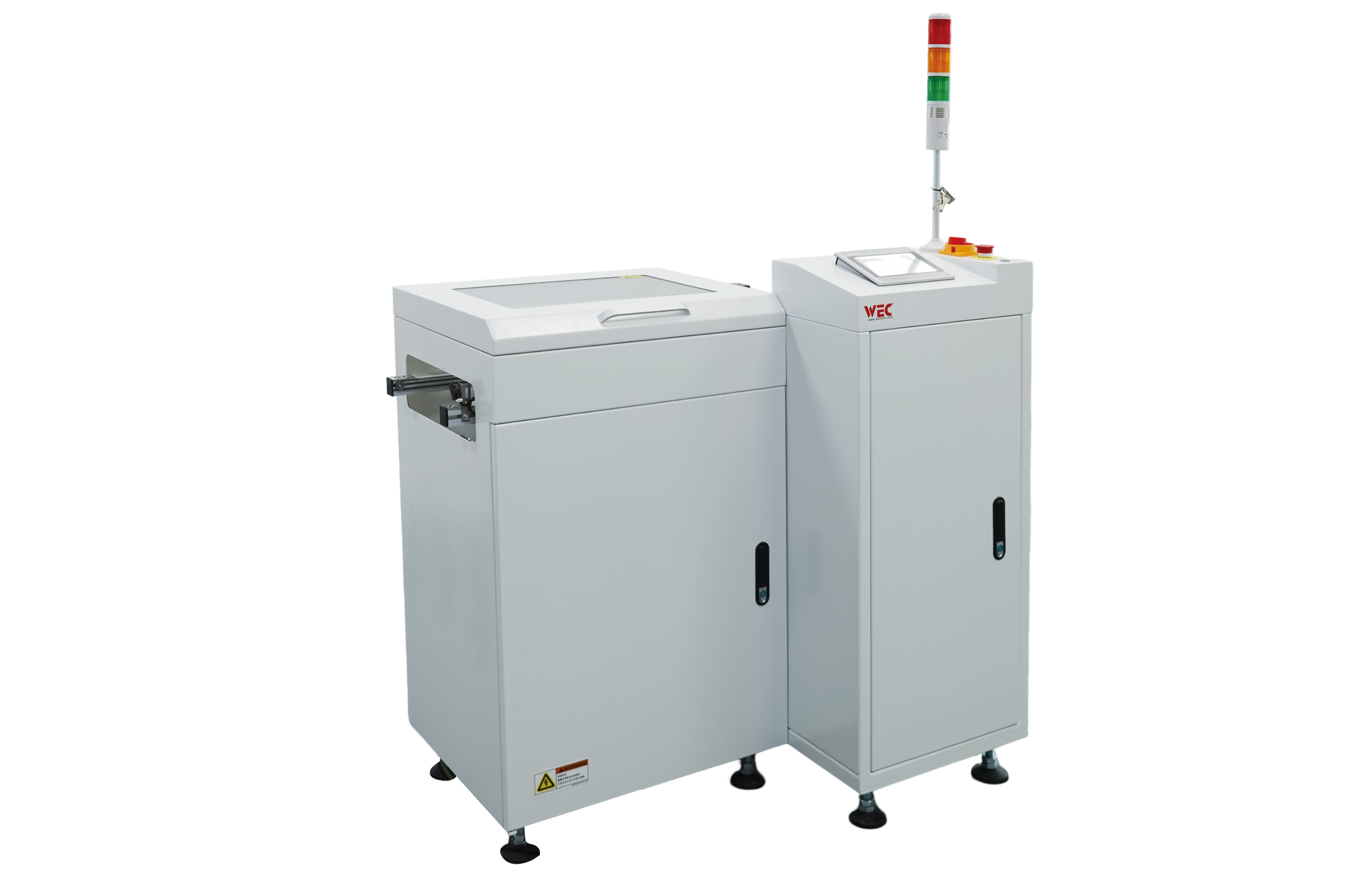

Magazine Buffer
HC-25N-ES / HC-33N-ES / HC-39N-ES / HC-46N-ES
Used in SMT line after printer, as buffer function. Can stores 50 PCBs. To Control PCBs first in first out or last in first out.
Three mode for selection: ① Loading mode ② Unloading mode ③ Buffer mode. In buffer mode, can control PCBs first in put or last in first out.
Request a Quote
Three mode for selection: ① Loading mode ② Unloading mode ③ Buffer mode. In buffer mode, can control PCBs first in put or last in first out.
Technical Specifications
Specific Technical Details
| Parameter | HC-25N-ES | HC-33N-ES | HC-39N-ES | HC-46N-ES |
|---|---|---|---|---|
| Machine Size | 1120(L)*1230(W)*1200(H)mm | 1280(L)*1400(W)*1200(H)mm | 1450(L)*1570(W)*1200(H)mm | 1450(L)*1690(W)*1200(H)mm |
| PCB Size | 50*50~(L)350*(W)250mm | 50*50~(L)460*(W)330mm | 50*50~(L)535*(W)390mm | 50*50~(L)535*(W)460mm |
| Magazine Size | L355*W320*H563mm | L460*W400*H563mm | L535*W460*H570mm | L535*W530*H570mm |
| Transport Direction | Front rail fixed, Transport from left to right . | |||
| Transport Height | 900+50/-20mm | |||
| Transport Rail | Special aluminum rail,4.8mm flat belt. | |||
| Rail loading Weight | Under 2KG | |||
| AC Power | AC220V/50-60HZ (single electric box control) | |||
| Control System | OMRON PLC and PANASONIC sensor. | |||
| Standard Signal | SMEMA | |||
