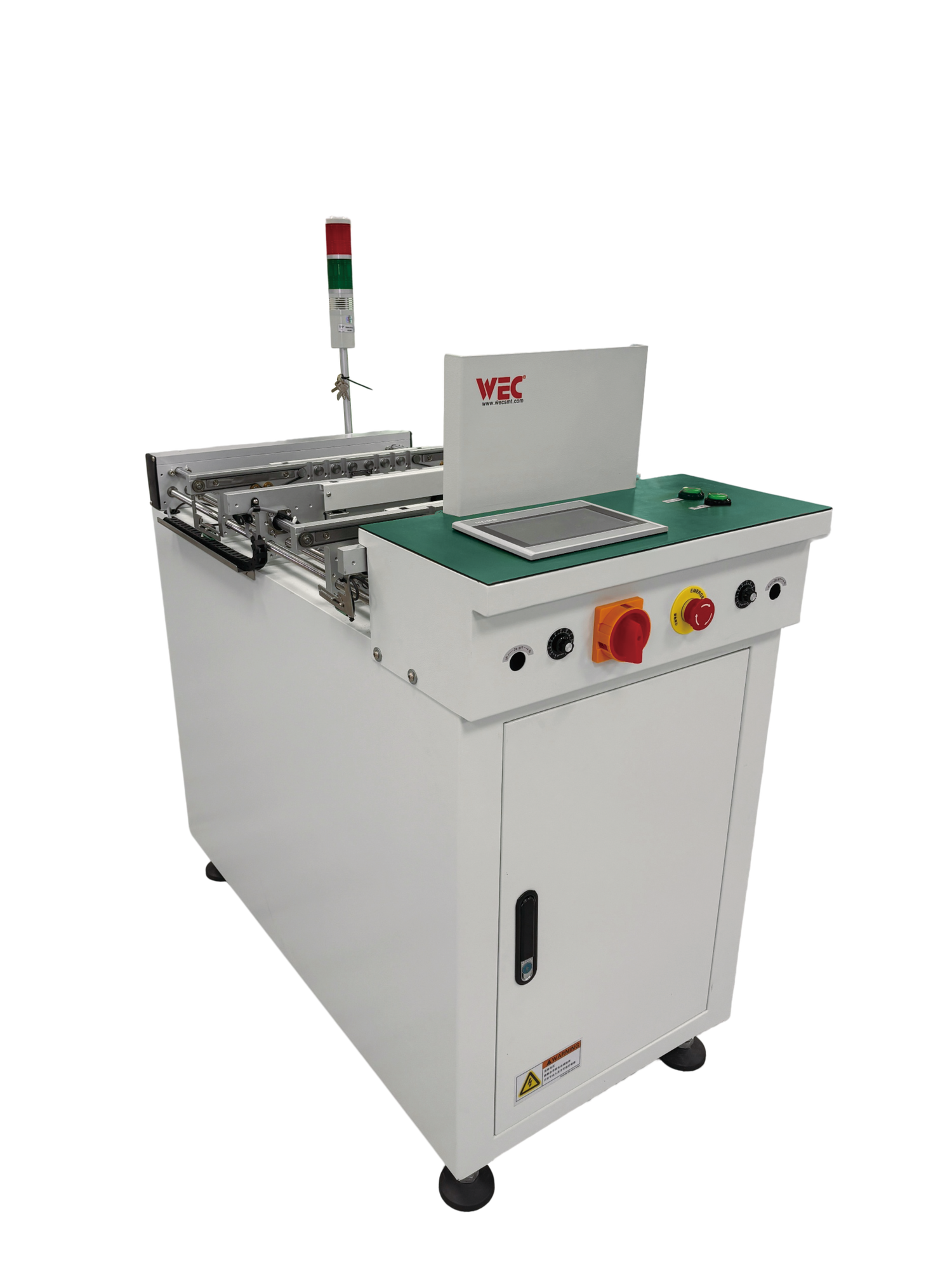

0.6M Dual Lane Reject Conveyor With Cover (Store 5 PCBs)
DE-060S-BEC
Used in SMT Production line after AOI equipment, separate the detected OK or NG PCB board.
Two sets of transmission mechanism, can be raised to store five NG boards.
Request a Quote
Two sets of transmission mechanism, can be raised to store five NG boards.
Technical Specifications
Specific Technical Details
| Parameter | DE-060S-BEC |
|---|---|
| Machine Size | (L)600*(W)1150*(H)1000mm |
| PCB Size | 50*50~L350*W310mm |
| Transport Direction | Front rail fixed, left to right transport, 1st~4th rail fixed distance is 686mm, 2nd~3rd rail adjustable. |
| Transport Height | 900+50/-20mm |
| Transport Rail | Special guide rail. |
| Control System | PLC, Sensor, Touch screen. |
| Power | AC220V/50-60HZ (single electric box control). |
