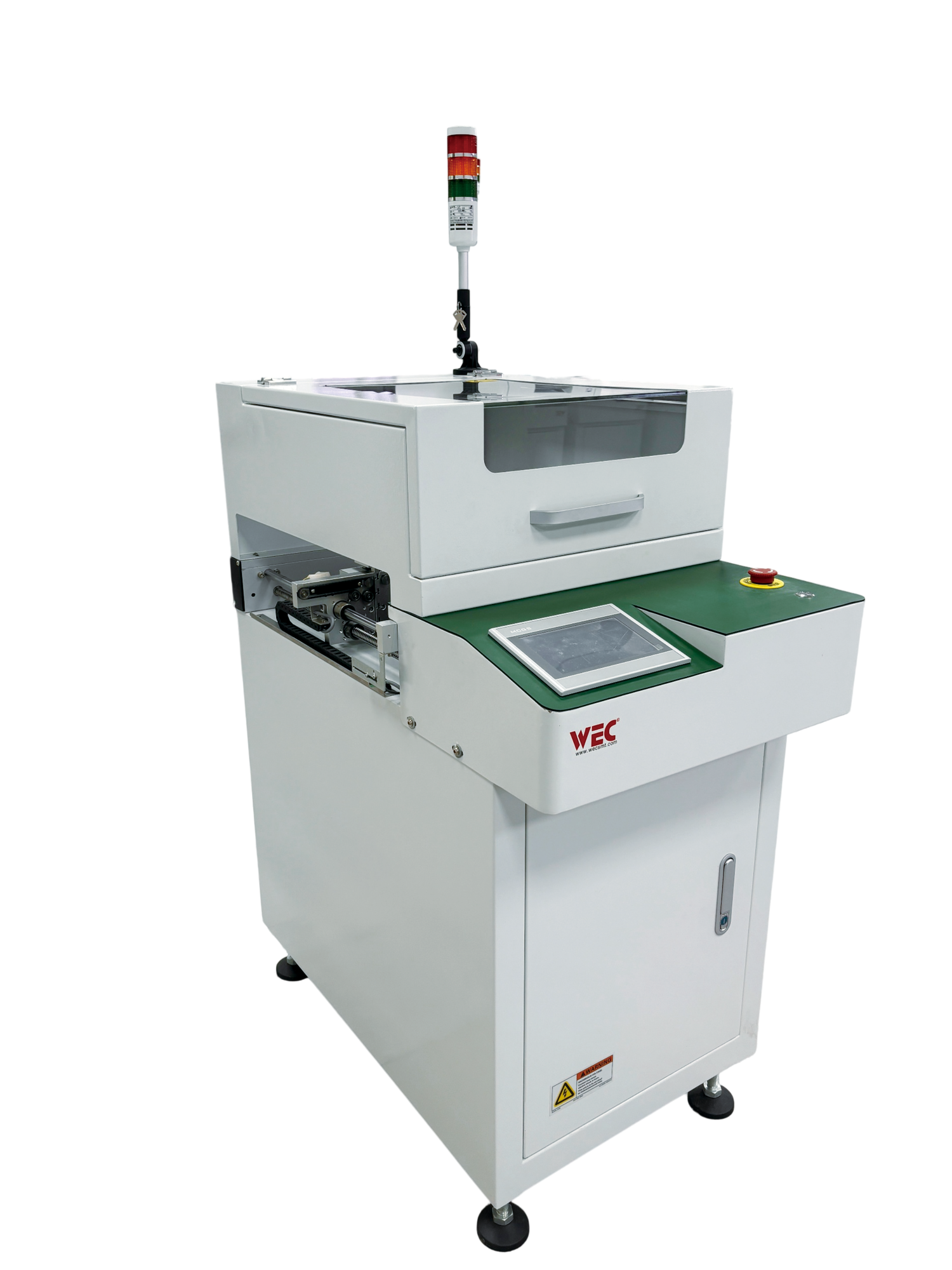

0.5m Reject Conveyor With Cover ( Store 5 PCBs)
BE-050M-BEC / BE-050L-BEC
Located after AOI to separate the OK/NG PCBs.
Can store 5PCBs.
With cover on top of rail.
Request a Quote
Can store 5PCBs.
With cover on top of rail.
Technical Specifications
Specific Technical Details
| Parameter | BE-050M-BEC | BE-050L-BEC |
|---|---|---|
| Machine Size | (L)500*(W)800*(H)1100mm | |
| PCB Size | 50*50~L460*W350mm | 50*50~L535*W460mm |
| Transport Direction | Front rail fixed, transport from left to right. | |
| Transport Height | 900+50/-20mm | |
| Transport Rail | Special guide rail. | |
| Control System | PLC, Sensor, Touch screen. | |
| Inspection Station | Install 250mm work table at front of rail. | |
| Power | AC220V/50-60HZ (single electric box control). | |
