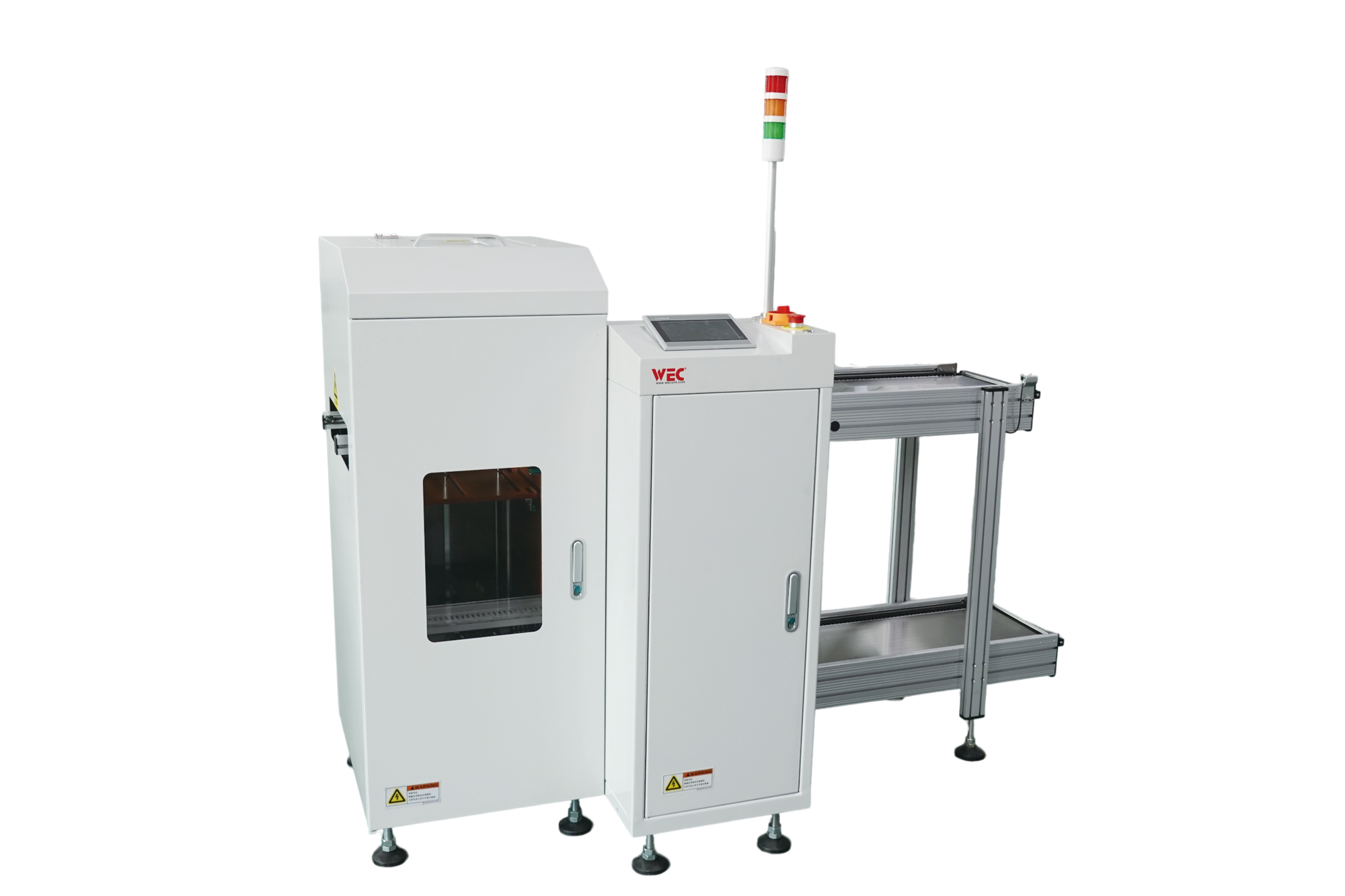

Automatic Sucking Loader
XL-25N-ES / XL-33N-ES / XL-39N-ES / XL-46N-ES
Used in the beginning of SMT line, receive PCBs one by one and push to magazine after received signal.
Two load modes: 1. Magazine load mode 2. Bare board load mode.
Request a Quote
Two load modes: 1. Magazine load mode 2. Bare board load mode.
Technical Specifications
Specific Technical Details
| Parameter | XL-25N-ES | XL-33N-ES | XL-39N-ES | XL-46N-ES |
|---|---|---|---|---|
| Machine Size | (L)1960*(W)800*(H)1400mm | (L)2220*(W)1000*(H)1280mm | (L)2185*(W)1200*(H)1300mm | (L)2480*(W)1400*(H)1300mm |
| Lift Pitches | 10 、20、30、40mm | |||
| Transport Direction | Front rail fixed, from left to right or right to left transport. | |||
| PCB Size | 50*50~(L)350*(W)250mm | 50*50~(L)460*(W)330mm | 50*50~(L)535*(W)390mm | 50*50~(L)535*(W)460mm |
| Magazine Size | L355*W320*H563mm | L460*W400*H563mm | L535*W460*H570mm | L535*W530*H570mm |
| Control System | Touch screen、PLC、Photoelectric sensor. | |||
| Power | AC220V/50-60HZ ( single electric box control) | |||
