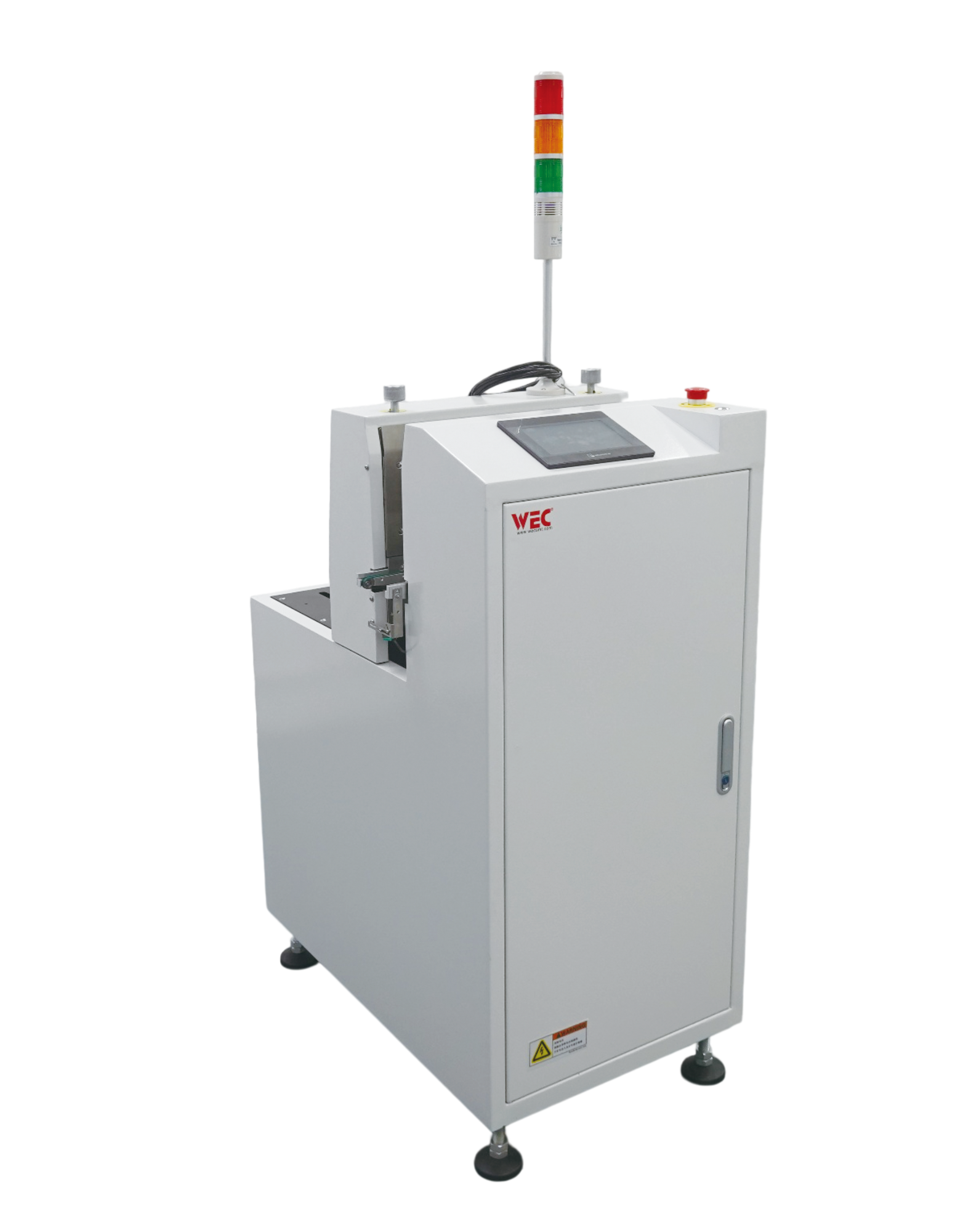

Stacker Unloader
SL-35N-ES / SL-46N-ES
Located in the end of SMT line,collect bare boards one by one after received signal from upstream.
Request a Quote
Technical Specifications
Specific Technical Details
| Parameter | SL-35N-ES | SL-46N-ES |
|---|---|---|
| Machine Size | (L)650*(W)810*(H)1200mm | |
| PCB Size | 50*50～(L)450*(W)350mm | 50*50～(L)535*(W)460mm |
| Transport Direction | Front rail fixed, from left to right transport. | |
| Transport Height | 900+50/-20mm, height can be adjusted by feet. | |
| Transport Rail | Special aluminum rail, 4.8mm width edge belt to do transfer. | |
| Control System | Touch screen、PLC、Photoelectric sensor. | |
| Power | AC220V/50-60HZ ( single electric box control) | |
