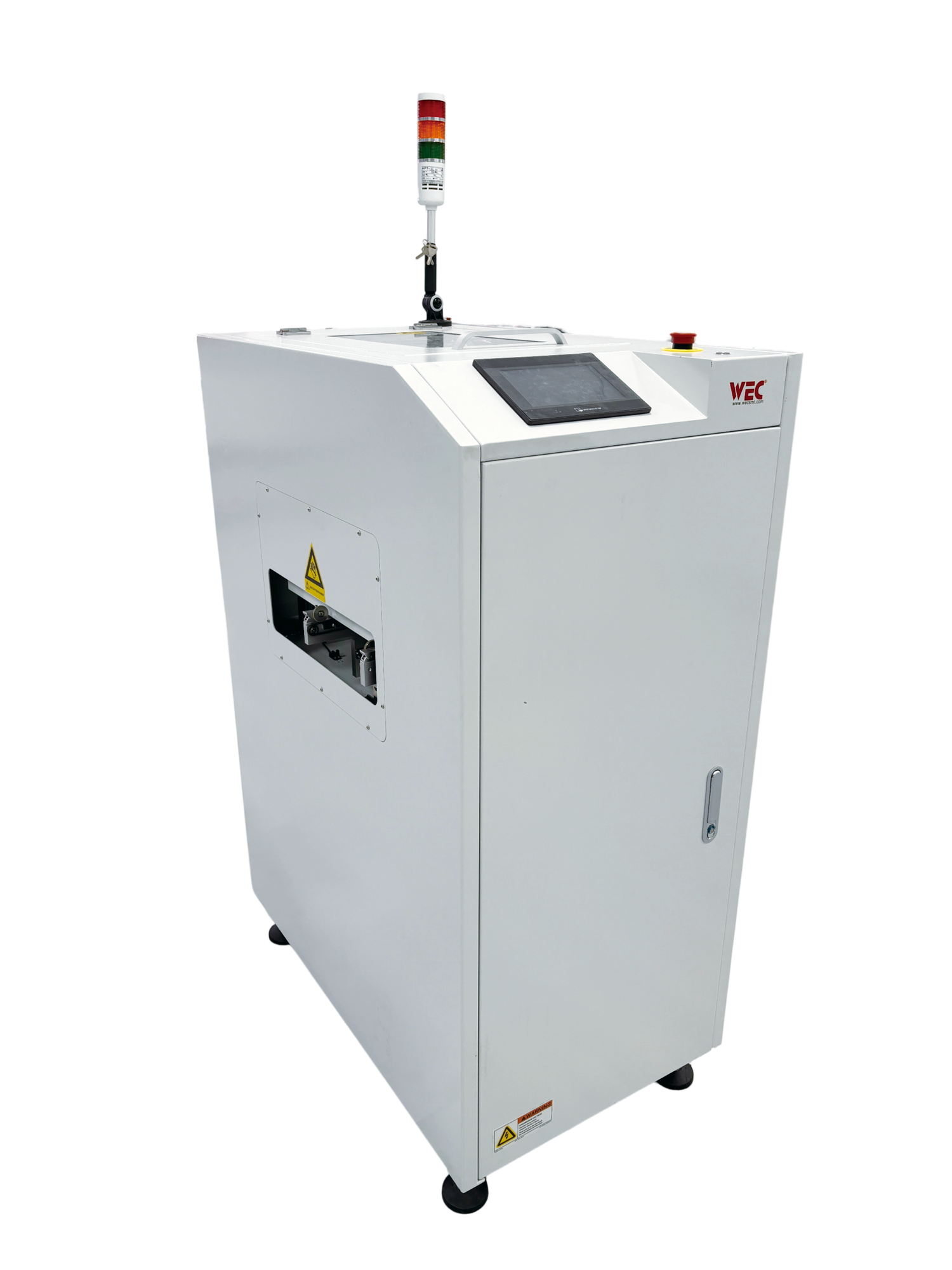

PCB Cleaner (Top Side Clean)
QX-35N-ES / QX-46N-ES
1. Cleaning roller contact PCB directly to remove the dust, sticky paper to remove the dust from cleaning roller.
2. With static eliminator on entrance and exit to lower the static value of PCB for better cleaning.
Request a Quote
2. With static eliminator on entrance and exit to lower the static value of PCB for better cleaning.
Technical Specifications
Specific Technical Details
| Parameter | QX-35N-ES | QX-46N-ES |
|---|---|---|
| Machine Size | (L)600*(W)953*(H)1360mm | (L)600*(W)1063*(H)1380mm |
| PCB Size | (L)100*(W)70～(L)460*(W)350mm | 5(L)100*(W)70～(L)535*(W)460mm |
| Transport Direction | Front rail fixed, transport from left to right . | |
| Transport Height | 900+50/-20(mm) | |
| PCB Thickness | 0.6~3mm | |
| Cleaning Speed | 4~30 seconds (adjustable). | |
| Cleaning Scope | PCB top surface | |
| Cleaning Mode | ①Build in cleaning bruch.②Build in vacuum exhaust fan.③Build in electrostastics sticky roller. | |
| Air Pressure | 6kg/cm3 | |
| Machine Weight | 150KG | |
| Communication | Standard SMEMA. | |
