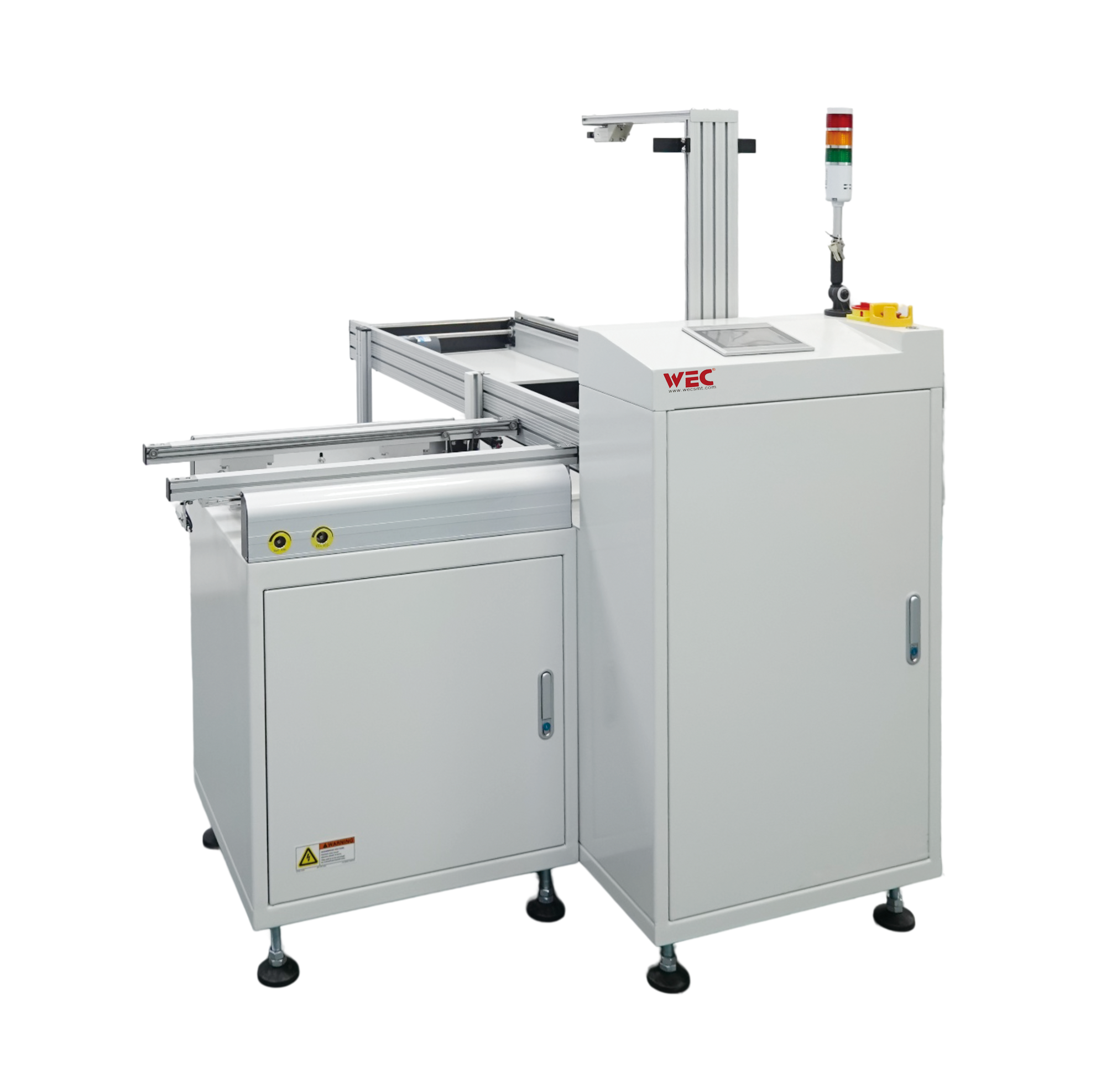

Right Angle Unloader
UL-25N-RT / UL-33N-RT / UL-39N-RT / UL-46N-RT
Used in the end of SMT line, receive PCBs one by one and push to magazine after received upstream signal.
Magazine input/output rail in rear side.
Request a Quote
Magazine input/output rail in rear side.
Technical Specifications
Specific Technical Details
| Parameter | UL-25N-RT | UL-33N-RT | UL-39N-RT | UL-46N-RT |
|---|---|---|---|---|
| Machine Size | (L)1120*(W)1230*(H)1230mm | (L)1280*(W)1400*(H)1230mm | (L)1450*(W)1570*(H)1230mm | (L)1450*(W)1690*(H)1230mm |
| PCB Size | 50*50～(L)350*(W)250mm | 50*50～(L)460*(W)330mm | 50*50～(L)460*(W)390mm | 50*50~(L)535*(W)460MM |
| Magazine Size | L355*W320*H563mm | L460*W400*H563mm | L535*W460*H570mm | L535*W530*H570mm |
| Transport Direction | Front rail fixed, from left to right. | |||
| Transport Height | 900+50/-20mm | |||
| Transport Rail | Special aluminum rail, 4.8mm edge belt for transfering. | |||
| Rail Weight Loading | Under 2KG | |||
| Power | AC220v/50-60HZ (single electric box control) | |||
| Lift Platform | TW made ball screw lift, all in one set aluminum lift platform | |||
| Transport Chain | Magazine in and out transport by black nylon engineering flat chain | |||
| Communication | Standard SMEMA | |||
