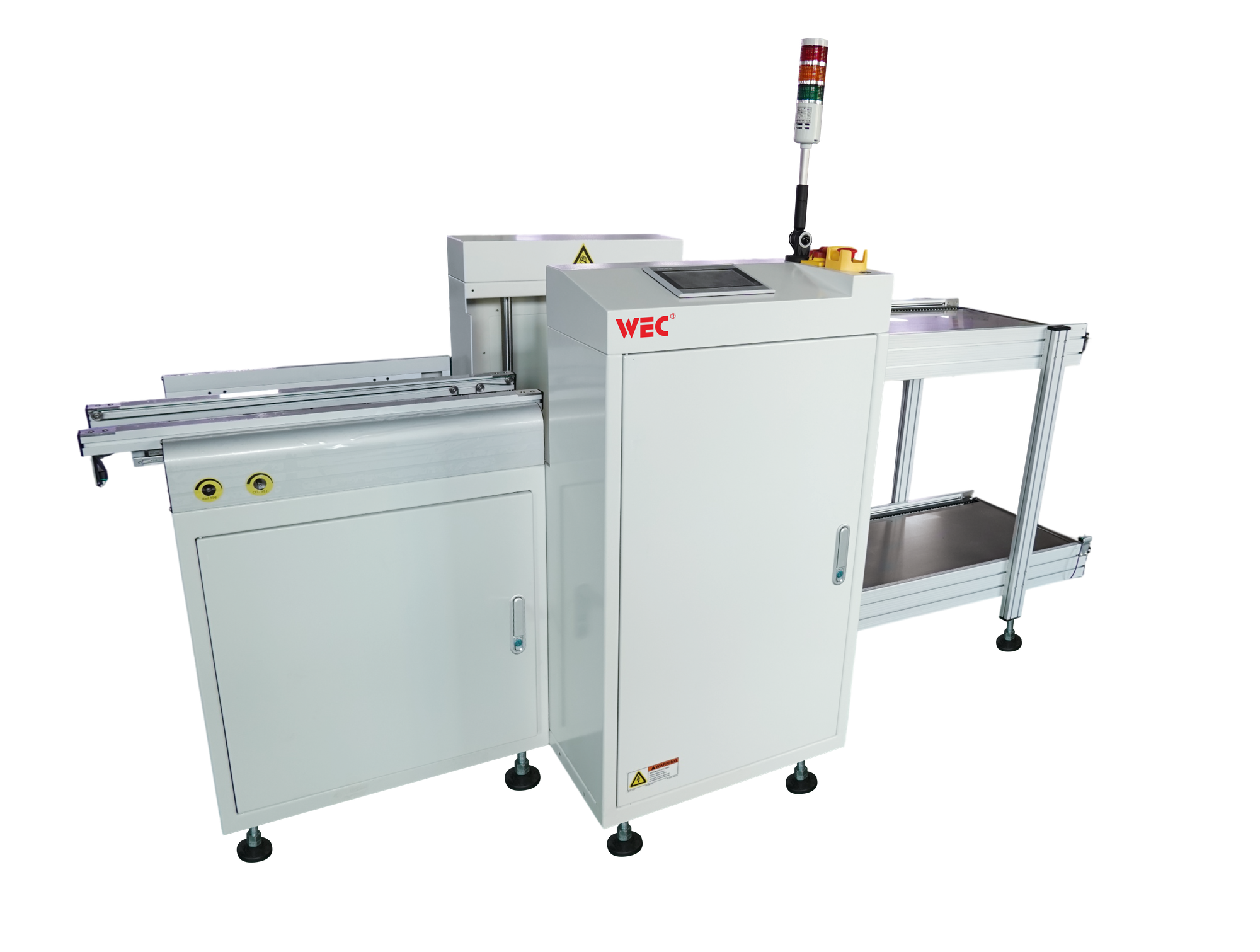

Automatic Unloader
UL-25N-ES / UL-33N-ES / UL-39N-ES / UL-46N-ES
Use in the end of SMT line receive PCBs one by one and push to magazine
The input rail and output rail each can load 1 magazine, the lifter can load 1 magazine. The lift pitches: 10,20,30,40mm.
Request a Quote
The input rail and output rail each can load 1 magazine, the lifter can load 1 magazine. The lift pitches: 10,20,30,40mm.
Technical Specifications
Specific Technical Details
| Parameter | UL-25N-ES | UL-33N-ES | UL-39N-ES | UL-46N-ES |
|---|---|---|---|---|
| Machine Size | (L)1680*(W)766*(H)1230mm | (L)1910*(W)850*(H)1230mm | (L)2160*(W)1050*(H)1230mm | (L)2160*(W)1120*(H)1230mm |
| PCB Size | 50*50～(L)350*(W)250mm | 50*50～(L)460*(W)330mm | 50*50～(L)460*(W)390mm | 50*50~(L)535*(W)460mm |
| Magazine Size | L355*W320*H563mm | L460*W400*H563mm | L535*W460*H570mm | L535*W530*H570mm |
| Transport Direction | Front rail fixed, from left to right transport. | |||
| Transport Height | 900+50/-20mm | |||
| Control System | Touch screen、PLC、Photoelectric sensor. | |||
| Lift Pitches | 10、20、30、40mm | |||
| Power | AC220V/50-60HZ (single electric box control). | |||
| Communication | Standard SMEMA | |||
