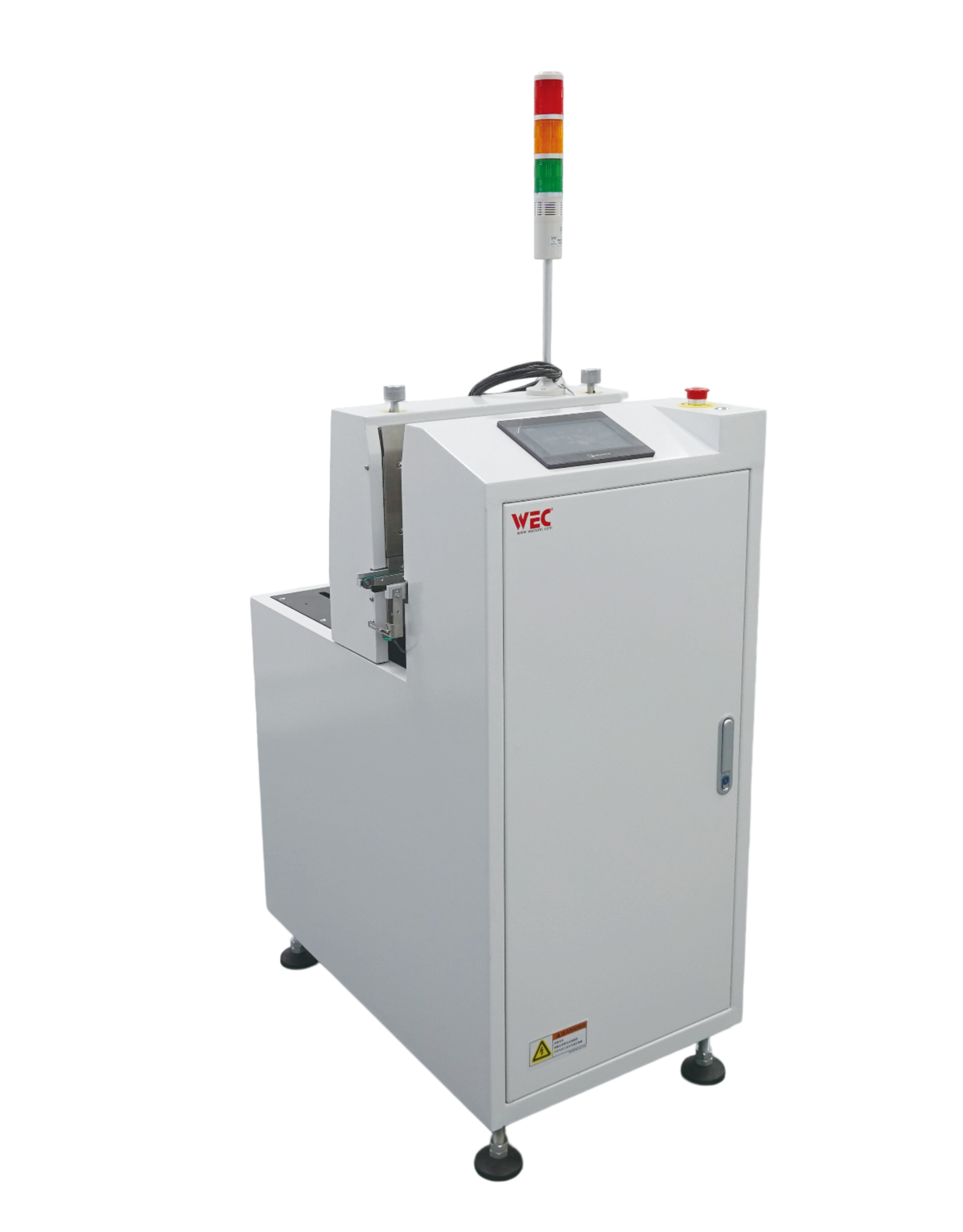

Destacker Machine
DL-35N-ES / DL-46N-ES
1.Used in the beginning of SMT line,send out the bare boards one by one to downstream after received signal from downstream.
Request a Quote
Technical Specifications
Specific Technical Details
| Parameter | DL-35N-ES | DL-46N-ES |
|---|---|---|
| Machine Size: | (L)600*(W)810*(H)1200mm | (L)600*(W)910*(H)1200mm |
| PCB Size: | 50*50~(L)460*(W)350mm | 50*50~(L)535*(W)460mm |
| Transport Direction | Front rail fixed, from left to right transport. | |
| Transport Height | 900+50/-20mm | |
| Transport Rail | Special aluminum rail, 4.8mm width edge belt to do transfer. | |
| Control System | Touch screen、 PLC、Photoelectric sensor. | |
| Power | AC220V/50-60HZ ( single electric box control) | |
| Communication | Standard SMEMA | |
