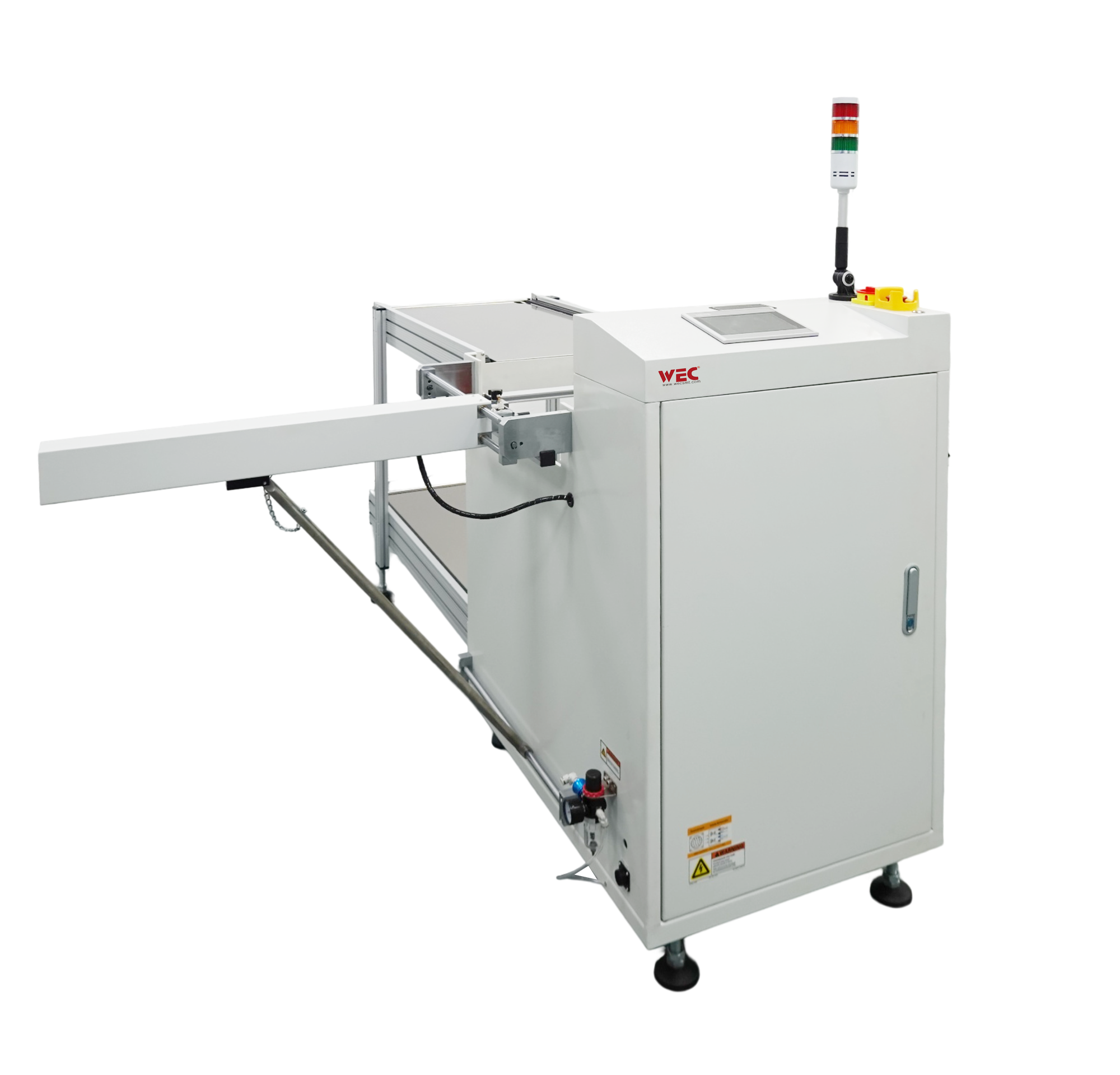

Right Angle Loader
BL-25N-ER / BL-33N-ER / BL-39N-ER / BL-46N-ER
Used in the beginnign of SMT line, send out the PCB form magazine one by one after received the downstream signal.
Magazine input/output rail in the rear side, as a right angle with machine.
Request a Quote
Magazine input/output rail in the rear side, as a right angle with machine.
Technical Specifications
Specific Technical Details
| Parameter | BL-25N-ER | BL-33N-ER | BL-39N-ER | BL-46N-ER |
|---|---|---|---|---|
| Machine Size | (L)1138*(W)1060*(H)1200mm | (L)1350*(W)1220*(H)1200mm | (L)1520*(W)1330*(H)1200mm | (L)1520*(W)1480*(H)1200mm |
| PCB Size | 50*50～(L)350*(W)250mm | 50*50～(L)460*(W)330mm | 50*50～(L)460*(W)390mm | 50*50~(L)535*(W)460mm |
| Magazine Size | L355*W320*H563mm | L460*W400*H563mm | L535*W460*H570mm | L535*W530*H570mm |
| Lift Pitches | 10 、20、30、40mm | |||
| Transport Direction | Front rail fixed, from left to right transport. | |||
| Transport Height | 900+50/-20mm | |||
| Control System | Touch screen、PLC、Photoelectric sensor. | |||
| Power | AC220V/50-60HZ ( single electric box control) | |||
| Communication | Standard SMEMA | |||
