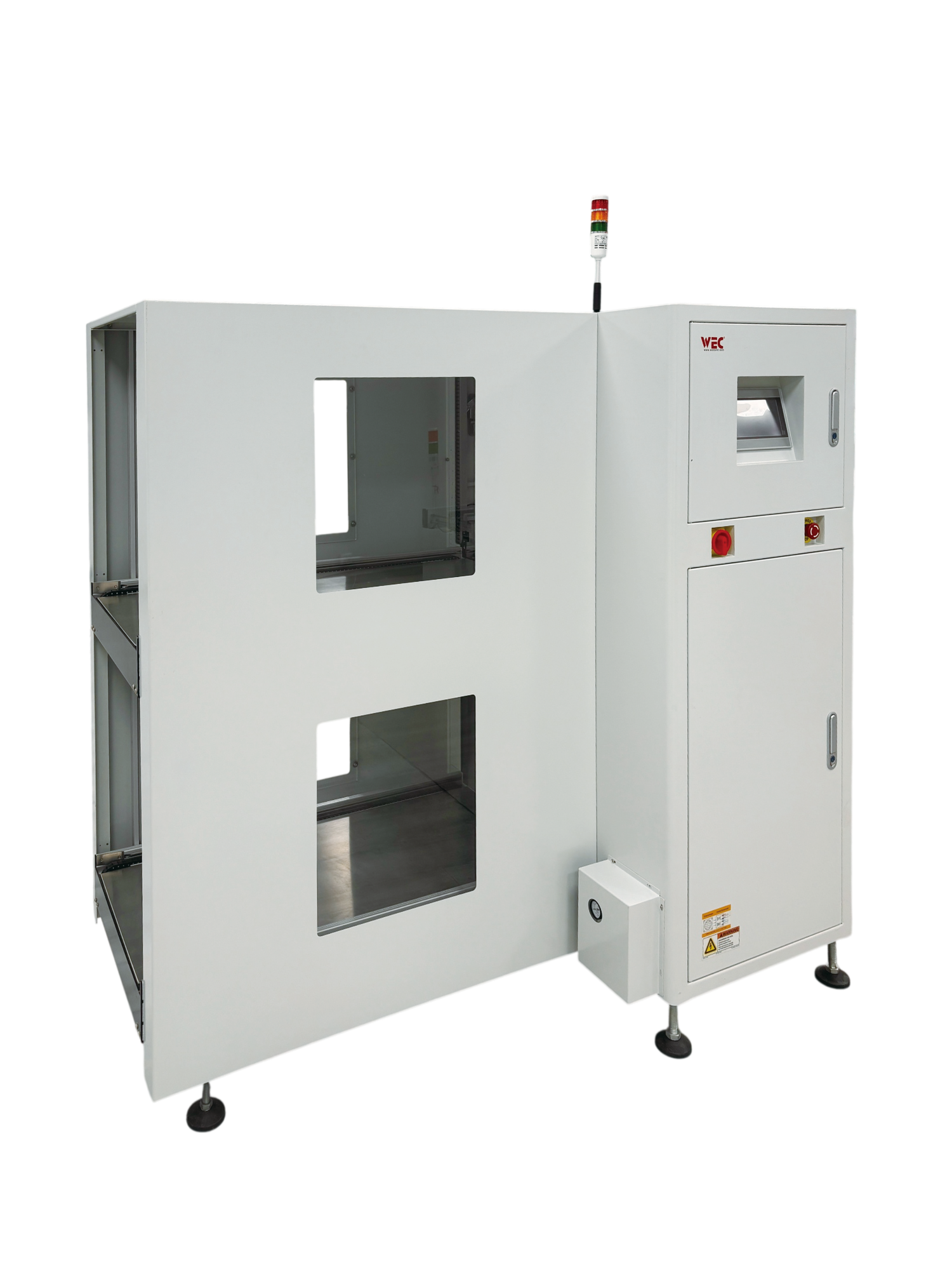

Automatic Loader With Cover
BL-250N-ESC / BL-330N-ESC / BL-390N-ESC / BL-460N-ESC
Used in the beginning of SMT line, receive PCBs one by one and push to magazine after received signal.
The input rail and output rail each can load 1 magazine, the lifter can load 1 magazine. The lift pitches: 10,20,30,40mm.
With full cover.
Request a Quote
The input rail and output rail each can load 1 magazine, the lifter can load 1 magazine. The lift pitches: 10,20,30,40mm.
With full cover.
Technical Specifications
Specific Technical Details
| Parameter | BL-250N-ESC | BL-330N-ESC | BL-390N-ESC | BL-460N-ESC |
|---|---|---|---|---|
| Machine Size | (L)1120*(W)766*(H)1650mm | (L)1300*(W)850*(H)1650mm | (L)1600*(W)1050*(H)1650mm | (L)1600*(W)1050*(H)1650mm |
| PCB Size | 50*50～(L)350*(W)250mm | 50*50～(L)460*(W)330mm | 50*50～(L)460*(W)390mm | 50*50~(L)535*(W)460mm |
| Magazine Size | L355*W320*H563mm | L460*W400*H563mm | L535*W460*H570mm | L535*W530*H570mm |
| Lift Pitches | 10 、20、30、40mm | |||
| Transport Direction | Front rail fixed, from left to right or right to left transport. | |||
| Transport Height | 900+50/-20mm | |||
| Control System | Touch screen、PLC、Photoelectric sensor. | |||
| Power | AC220V/50-60HZ ( single electric box control) | |||
| Communication | Standard SMEMA | |||
