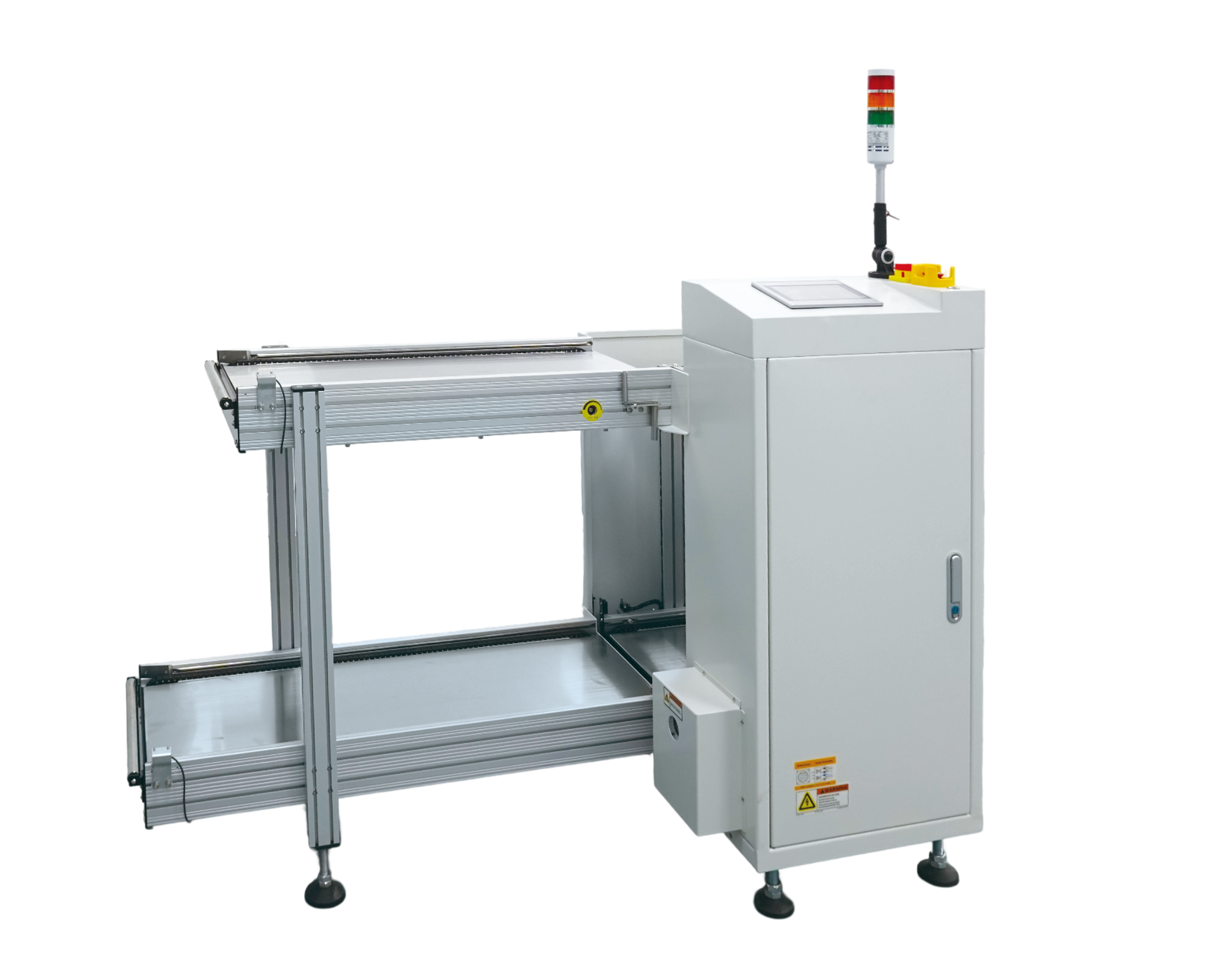

Automatic Loader
BL-250N-ES / BL-330N-ES / BL-390N-ES / BL-460N-ES
Used in the beginning of SMT line, send out the PCBs from magazine one by one after received the signal from downstream.
The input rail and output rail each can load 1 magazine, the lifter can load 1 magazine. The lift pitches: 10,20,30,40mm.
Request a Quote
The input rail and output rail each can load 1 magazine, the lifter can load 1 magazine. The lift pitches: 10,20,30,40mm.
Technical Specifications
Specific Technical Details
| Parameter | BL-250N-ES | BL-330N-ES | BL-390N-ES | BL-460N-ES |
|---|---|---|---|---|
| Machine Size | (L)1120*(W)766*(H)1230mm | (L)1300*(W)850*(H)1230mm | (L)1600*(W)1050*(H)1230mm | (L)1600*(W)1050*(H)1230mm |
| PCB Size | 50*50～(L)350*(W)250mm | 50*50～(L)460*(W)330mm | 50*50～(L)460*(W)390mm | 50*50~(L)535*(W)460mm |
| Magazine Size | L355*W320*H563mm | L460*W400*H563mm | L535*W460*H570mm | L535*W530*H570mm |
| Lift Pitches | 10 、20、30、40mm | |||
| Transport Direction | Front rail fixed, from left to right or right to left transport. | |||
| Transport Height | 900+50/-20mm | |||
| Control System | Touch screen、PLC、Photoelectric sensor. | |||
| Power | AC220V/50-60HZ ( single electric box control) | |||
| Communication | Standard SMEMA | |||
