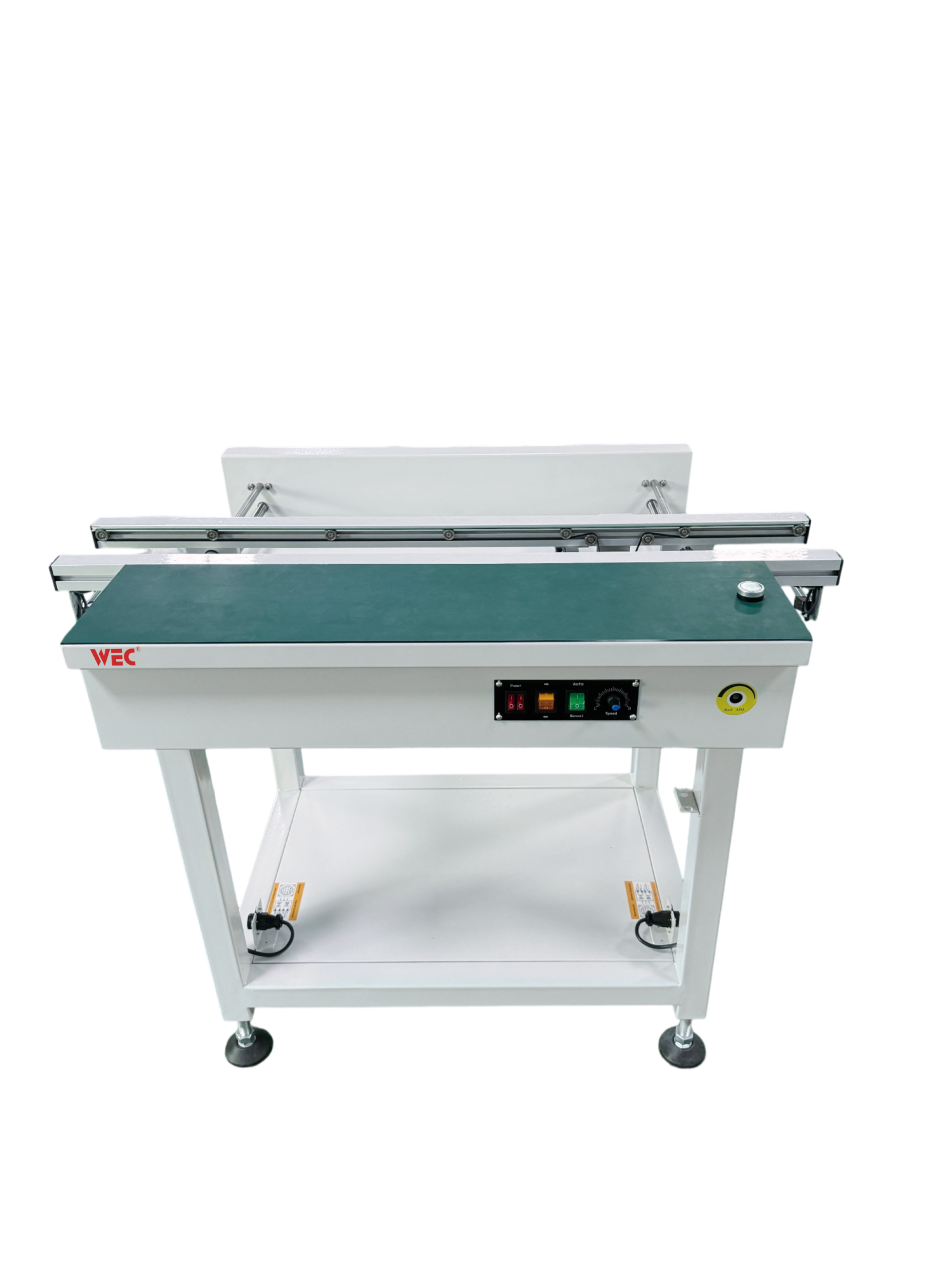

1.0m Linking Conveyor
BF-100M-HE
Main function:
1. Used in SMT line as linking, inspection function, 3 sensors. A set of motor.
2. In manual mode can stop one PCB for inspection, after press reset button, PCB flow to exit to wait for downstream signal to send out.
3. In auto mode, PCB flow to exit directly to wait for downstream signal to send out.
Request a Quote
1. Used in SMT line as linking, inspection function, 3 sensors. A set of motor.
2. In manual mode can stop one PCB for inspection, after press reset button, PCB flow to exit to wait for downstream signal to send out.
3. In auto mode, PCB flow to exit directly to wait for downstream signal to send out.
Technical Specifications
Specific Technical Details
| Parameter | BF-100M-HE | BF-100L-HE |
|---|---|---|
| Machine Size | (L)1000*(W)700*(H)900mm | (L)1000*(W)800*(H)900mm |
| PCB Size | 50*50~(L)460*(W)350mm | 50*50~(L)535*(W)460mm |
| Transport Direction | Front fixed, left to right. | |
| Transport Height | 900+50/-20mm | |
| Transport Rail | Special guide rail. Use 4.8mm edge belt for transfering | |
| Rail Weight Loading | Under 2KG | |
| Control System | PLC、Sensor. | |
| Inspection Station | Install 200mm work table at front of rail. | |
| Power | AC220V/50-60HZ (single electric box control). | |
